Ultra Thin LED UFO High Bay Light

Short Description:

100W/150W/200W UFO led high bay lighting fixture, 130-140lm/w, IP65 waterproof high-quality housing with good heat dissipation performance, matched with good-quality optic lens, Philips Lumileds 3030 led chip and brand IP65 driver, life span more than 5 years, widely used in indoor and outdoor industrial solutions.


  • Power:: 100W, 150W, 200W
  • Input Voltage:: AC90-305V 50/60Hz
  • Lumen: : 13500-26000lm
  • Beam Angle: : 60/90/120°
  • IP Rate: IP65
  • FEATURE

    SPECIFICATON

    application

    Download

    Product Tags

    Feature

    1 (1)

    Ultra-thin UFO, 100W only 38.6mm thick
    Our new ultra-competitive ultra-thin UFO lamp is based on the excellent heat dissipation performance of Philips light source, using pure aluminium spinning process, ultra-thin shape design, lightweight lamps, beautiful appearance. It is safer than conventional UFO LED work light, the thickness of 100W is only 38.6mm, the net weight is only 1.42KG, which is more than 50% lighter than conventional UFO work light, the weight requirement of the overhead structure is lower, and the weight of the installation accessories, such as hanging chain and boom is also lower, safer and saves the installation cost.

    1 (2)

    VKS Makalo series led high bay lighting housing is made of 6063 die-cast aluminum, after 15 surface processing technology, and can withstand up to 600 hours of salt spray test is still nondestructive, strong and effective resistance to salt corrosion, in coastal areas, wet, very corrosive sea wind still does not affect its service life.

    1 (4)

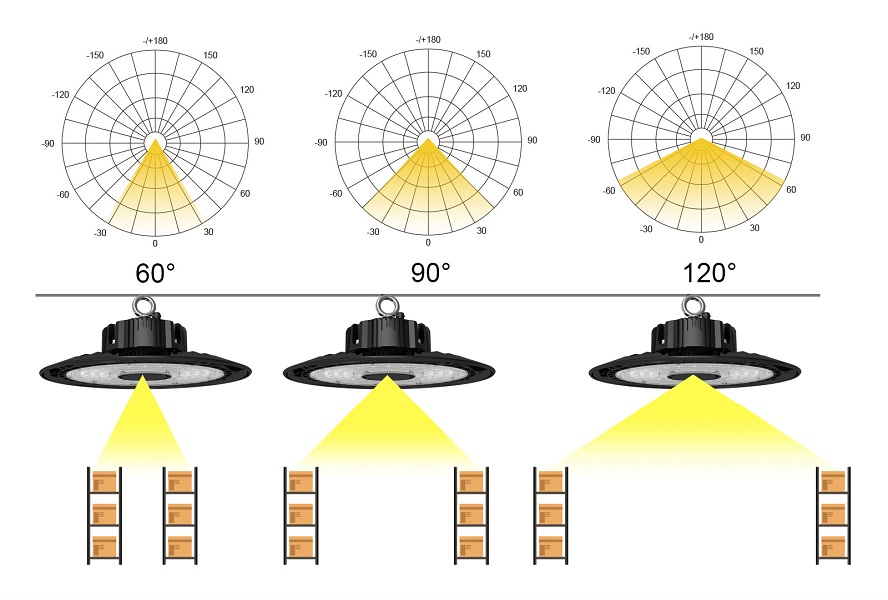

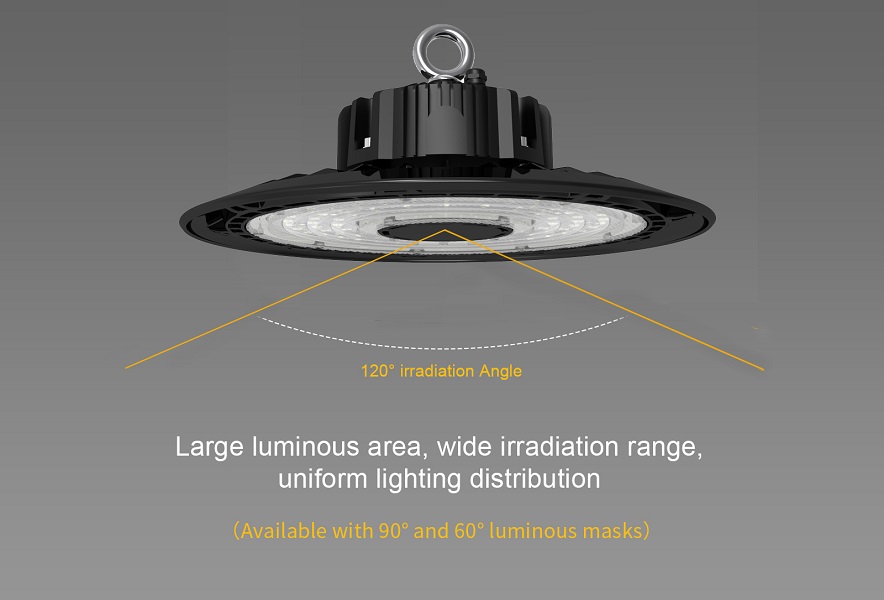

    The Ultra thin UFO LED high bay light break through the light distribution method of traditional LED lamps, maximize the efficiency of the use of every beam of LED light and reduce the output of miscellaneous light, so that the lamps and lanterns have perfect optical effect, three light types can be selected, to meet the Angle requirements of almost all indoor high-altitude places.

    1 (3)

    VKS Makalo series 130-140LM/W LED UFO lights, 50%-70% than the traditional industrial and mining light festival, to cater to THE CONCEPT of VKS green energy saving and environmental protection, ultra-high cost performance, a very competitive ufo led light.

    1 (5)

    Specification

    Model VKS-HB100W-M VKS-HB150W-M VKS-HB200W-M
    Power 100W

    150W

    200W
    Product size(mm) Φ285*152.6mm Φ345*154.2mm Φ398.2*153.1mm
    Input Voltage

    AC90-305V 50/60Hz

    LED Type

    Lumileds(Philips) SMD 3030

    Power Supply

    Meanwell / ELG / SOSEN / Inventronics driver

    Efficacy(lm/W)±5%

    130-140LM/W(5000K, Ra70)

    Lumen Output±5%

    13500LM

    20250LM

    26000LM

    Beam Angle

    60° / 90° / 120°

    CCT (K)

    3000K/4000K/5000K/5700K

    CRI

    Ra70(Ra80 for optional)

    IP Rate

    IP65

    PF

    >0.95

    Dimming

    Non-dimming (Default) /1-10V Dimming / Dali dimming

    Intelligent Control

    Motion Sensor

    Material

    Die-Cast + PC Lens

    Operating Tenperature

    -40℃ ~ 65℃

    Humidity

    10%~90%

    Finish

    Powder Coating

    Surge Protection

    4kV line-line(10KV,20KV for optional)

    Mounting Option

     Bracket

    Warranty

    5 Years

    Q’TY(PCS)/carton

    1PCS

    1PCS

    1PCS

    N.W.(KG/carton)

    1.42kg

    2.1kg

    2.65kg

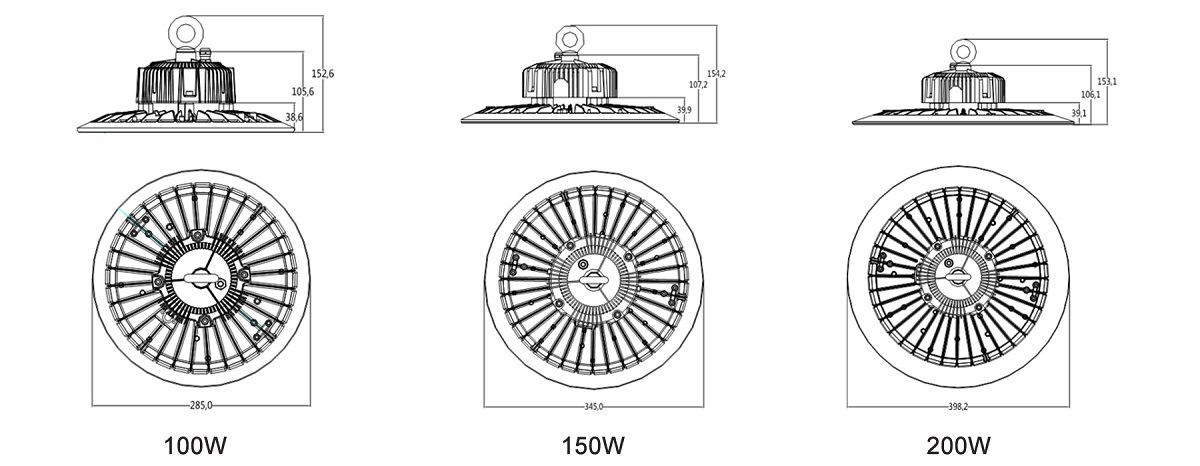

    Size Drawing

    a (1)

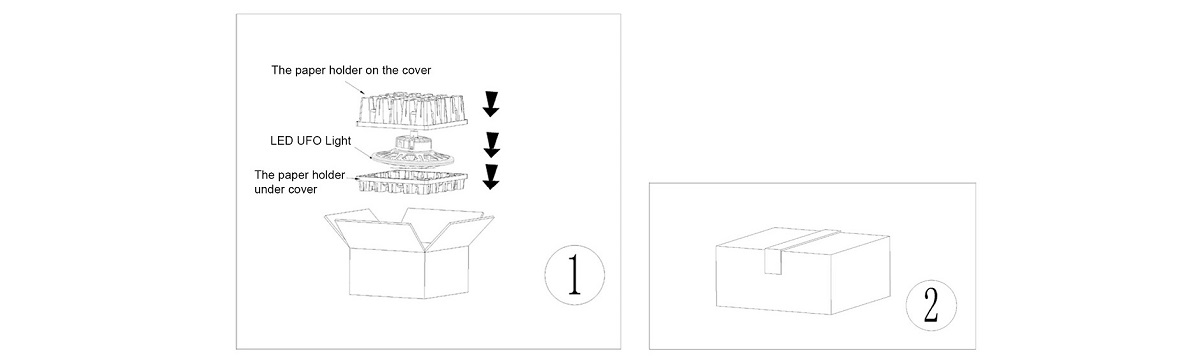

    Packing

    a (2)

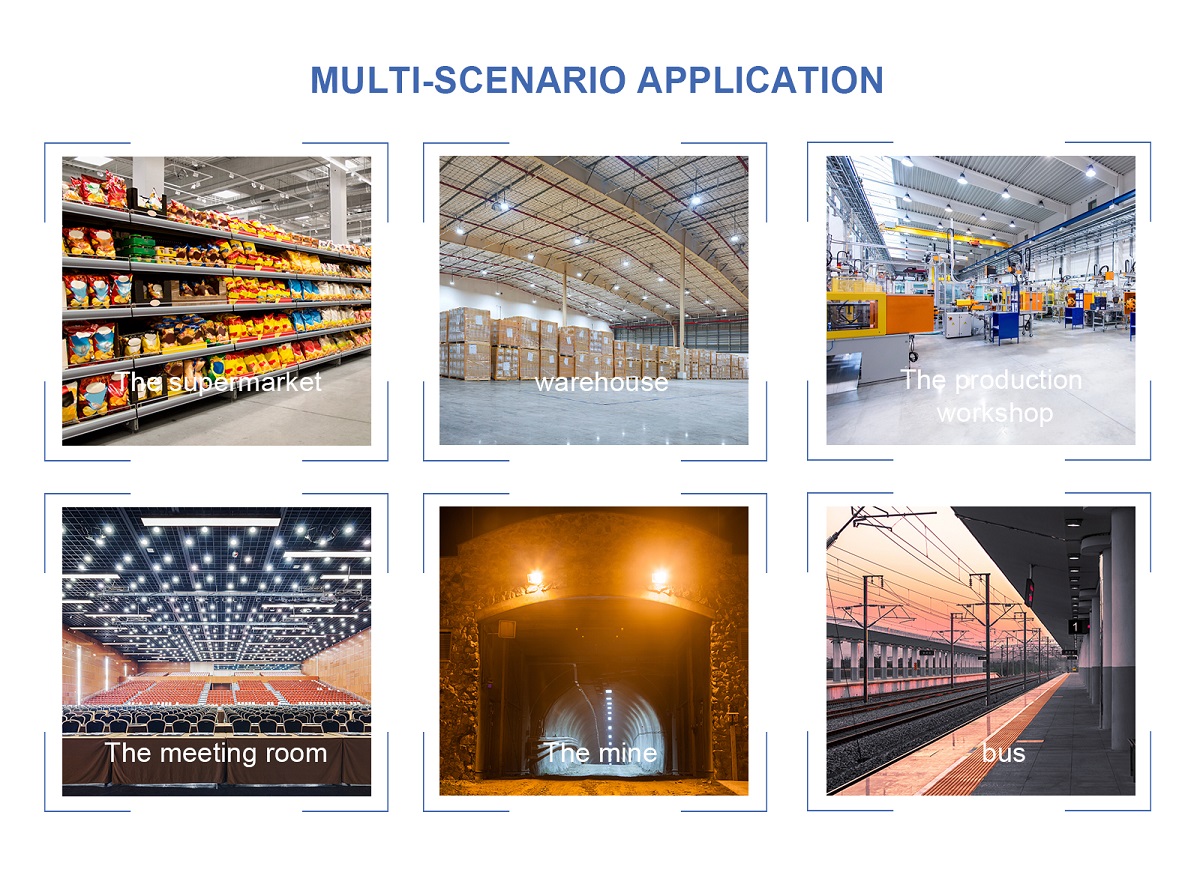

    APPLICATION

    VKS Makalo series industrial high bay LED lighting is designed for heat dissipation from top to bottom, with super heat dissipation performance, ensuring the life of light source and power supply, and the energy efficiency is 50% more than that of ordinary metal halide lamps and non-pole lamps. Light alloy materials, special sealing and surface coating treatment ensure that the lamps will never corrode and never rust in damp and high temperature environment, and the color rendering is good. Eliminate the traditional lamps color temperature is high or low caused by depression, so as to improve people's work efficiency, widely used in workshops, mines, factories, shipyards, warehouses, highway toll stations, gas stations, large supermarkets, exhibition tube, sports tube and other places that need industrial warehouse lighting.
    VKS Makalo series UFO LED high bay light basically is used in places such as factories and enterprises, workshop, workshop more, because of its strong applicability, to meet the needs of the application of industrial sites, and in extreme harsh conditions to achieve simple and stable installation, maintenance free and comfortable lighting for a long time, to help workers have lighting requirements of industrial sites to improve work efficiency and personnel safety, Generally speaking, there are many places to use, basically covering some workshops and so on. In addition, exhibition halls and gymnasiums are used as lighting. In these places, we can often see high bay led lights.
