LED High Mast Flood Lighting

Short Description:

The LED high mast lighting is the industry’s first die-casting plus fin design, fin riveted design, heat sink middle hollow, increase air convection, good heat dissipation performance. The high mast light led light is 96 in 1-5050 program design, the whole light output luminous efficiency can reach 150lm / W; polarized 50/65 ° optical design, to meet the 0 ° elevation angle installation requirements, greatly reducing construction costs and control the dazzle index. LED high mast flood light has a variety of optical angles, flicker-free LED lighting, to meet the needs of television broadcast-level stadiums, airports, docks and other light angle lighting.

  • Power: 500W/750W/1000W/1250W/1500W
  • Input Voltage: 100V-240Vac 50/60HZ
  • Lumen: 75,000LM-225,000LM
  • Beam Angle: 8°/20°/40°/60°/49*21°
  • IP Rate: IP65




    Product Tags

    The Industry's First Die-cast Aluminium plus Fin Design
    High Mast Light with Multiple Optical Angles ahd Flicker-free
    LED Lighting to Meet Televised Stadium Lighting Requirements.

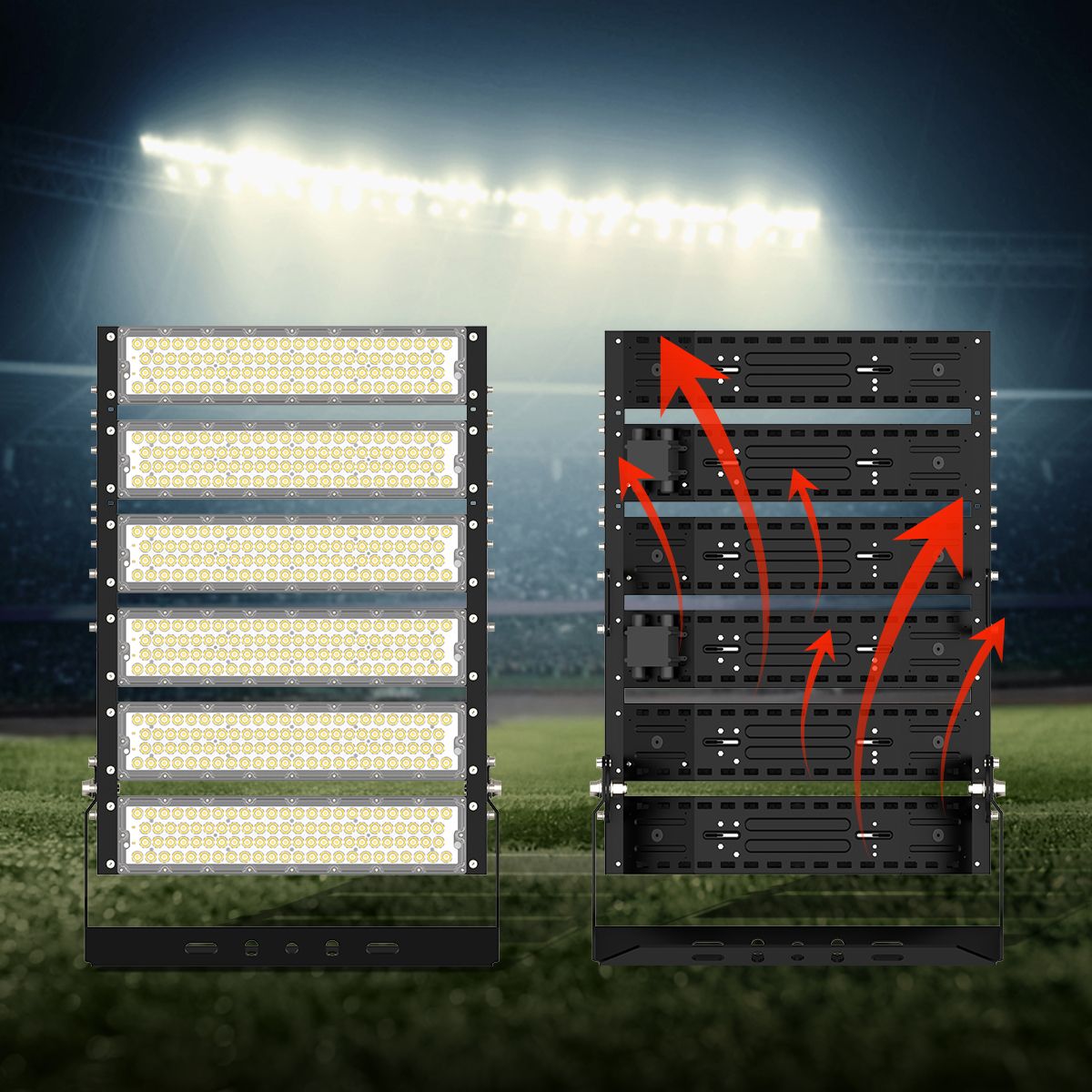

    The heat generated by the indoor and outdoor high mast lighting relies on the natural dissipation of the surrounding air, this LED flood lights uses fin riveted design, the middle of the heat sink hollow, heat sink fins left between the airflow dispersion slot, in the form of a piece of longitudinal row around the heat sink, the side is a step-like, increasing air convection and heat dissipation area, to avoid heat concentration, to help the stadium lamp body heat dissipation quickly and evenly.
    At the same time outdoor led stadium lights is die-casting aluminum plus fins design to achieve 1000 watts of finished lamps in about 22 kg, convenient for international transport.

    8°/20A variety of high mast flood light in stadium optical angles to choose from, no glare

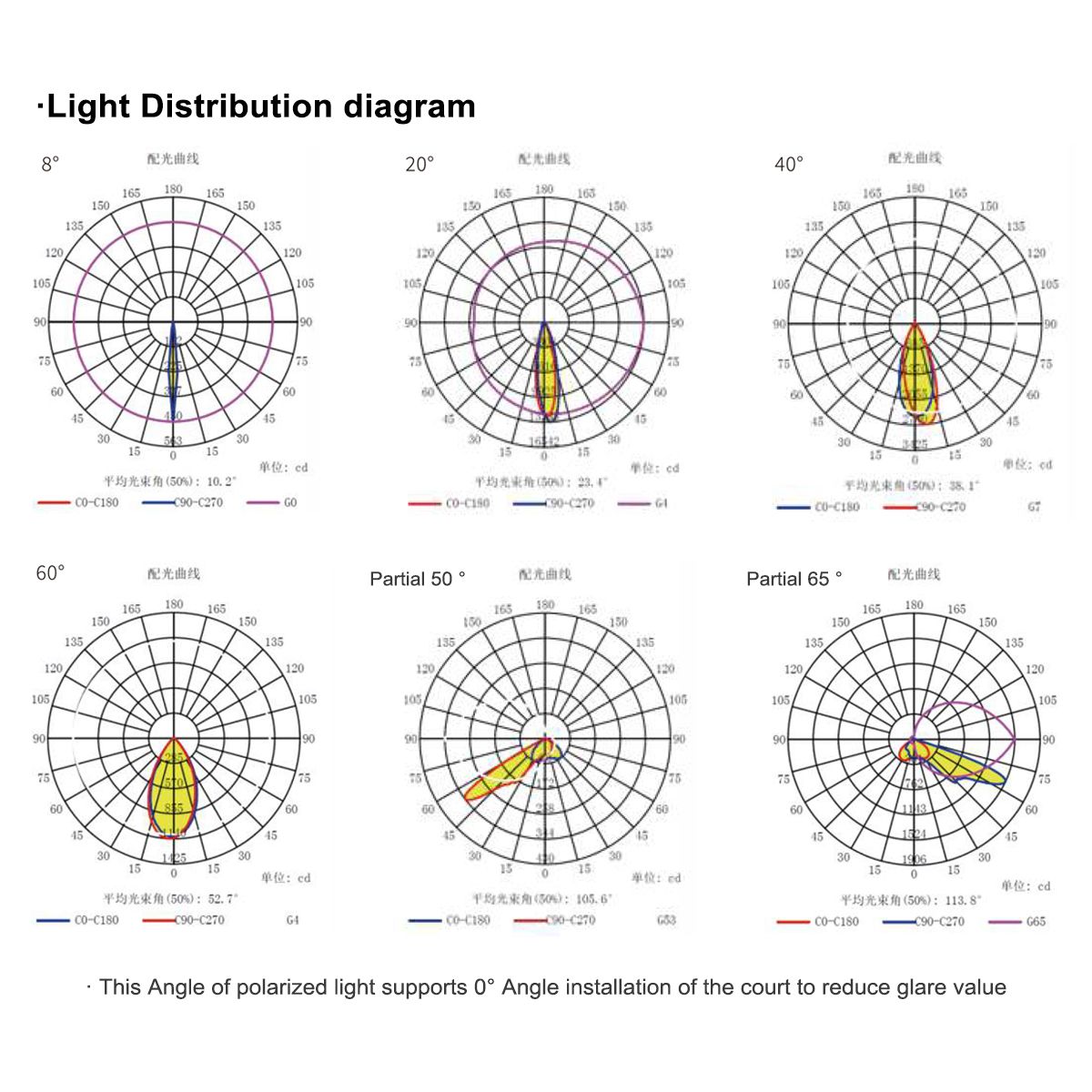

    Luminous angle of 8 ° / 20 ° / 40 ° / 60 ° / 49 * 21 ° (bias 50 °) / 49 * 21 ° (bias 65 °), polarized 50 / 65 ° optical design, to meet the 0 ° elevation angle installation requirements, greatly reducing construction costs and control the glare index.

    Flicker-free high mast flood lighting for stadium lighting, meeting the standard of HD photography and super slow-motion playback, suitable for scenes such as large soccer stadiums, rugby fields, golf courses, ski resorts, racetracks and professional basketball arenas.


    Model VKS-HFL-500W-G VKS-HFL-750W-G VKS-HFL-1000W-G VKS-HFL-1250W-G VKS-HFL-1500W-G
    Input Power 500W 750W 1000W 1250W 1500W
    Product Size(mm) 395*625*175mm 535*625*175mm 676*625*175mm 816*625*175mm 956*625*175mm
    Input Voltage AC90-305V 50-60Hz
    LED Type Lumileds 5050
    Power Supply Meanwell/SOSEN/Inventronics driver
    Power Supply Surge Protection L-N 4KV,L/N-PE 6KV
    Total Harmonic Distortion (AC230V) <10%
    Odd Harmonic Limit Value IEC 61000-3-2 Class C
    Power Protection Function Over power protection, over current protection, over voltage protection, short circuit protection, over temperature protection
    Start Time <0.5S (230V)
    Strobe Flicker free
    Efficacy(lm/W) 150lm/W±10%
    Lumen Output±10% 75,000 112,500 150,000 187,500 225,000
    Beam Angle 8°/20°/40°/60°/49*21°(bias 50°)/49*21°(bias 65°)
    CCT (K) 4000K-5700K
    CRI ≥70
    Color Tolerance ≤7
    QTY(PCS)/carton 1 1 1 1 1
    N.W.(KG/carton) 12.8 17.2 22 26.5 31
    G.W.(KG/carton) 14.5 19.5 24.7 30 35
    Packing Size(mm) 475*675*210 625*675*210 765*675*210 905*675*210 1045*675*210

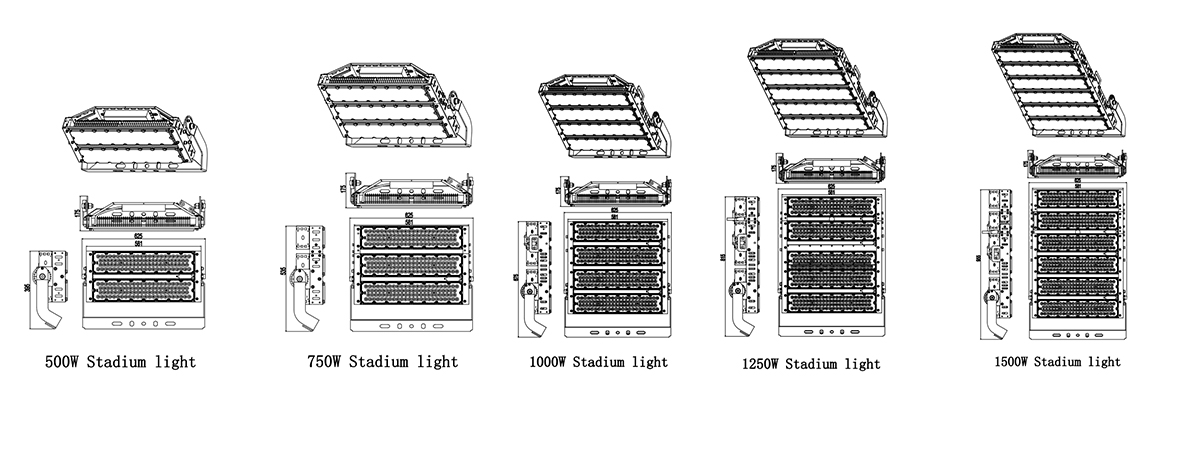

    LED Stadium Light Product Size

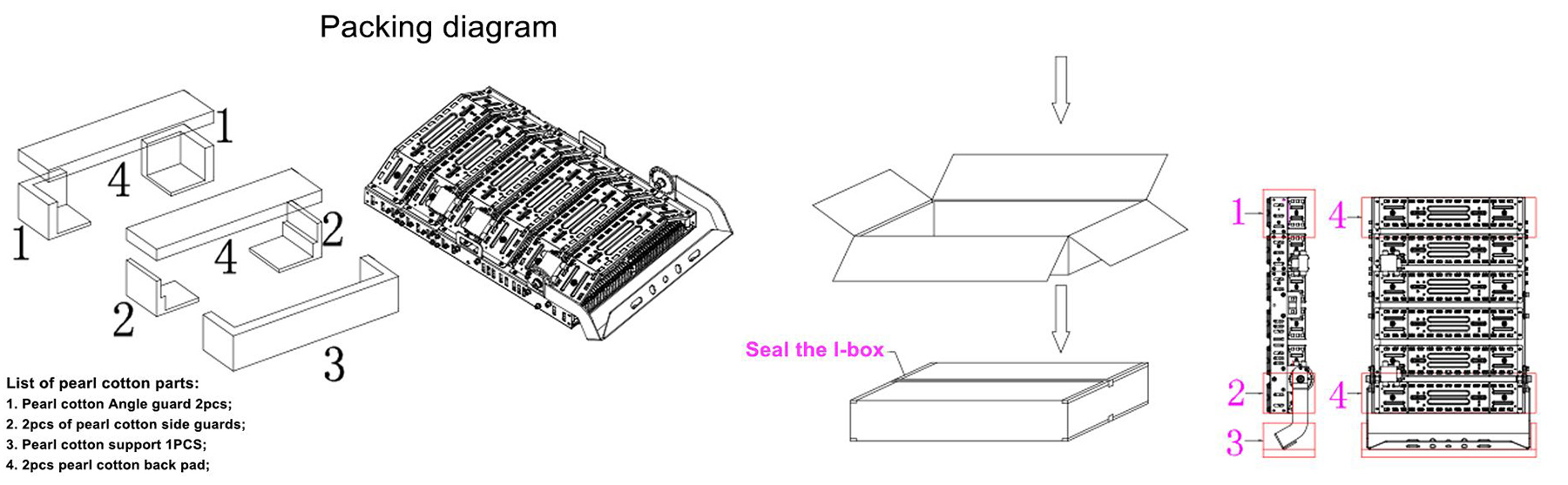

    LED Stadium Light Packaging

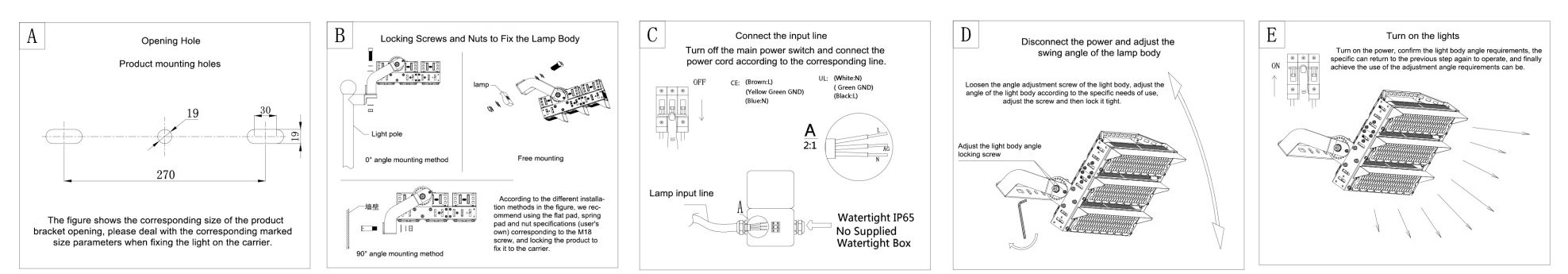

    LED Stadium Light Installation

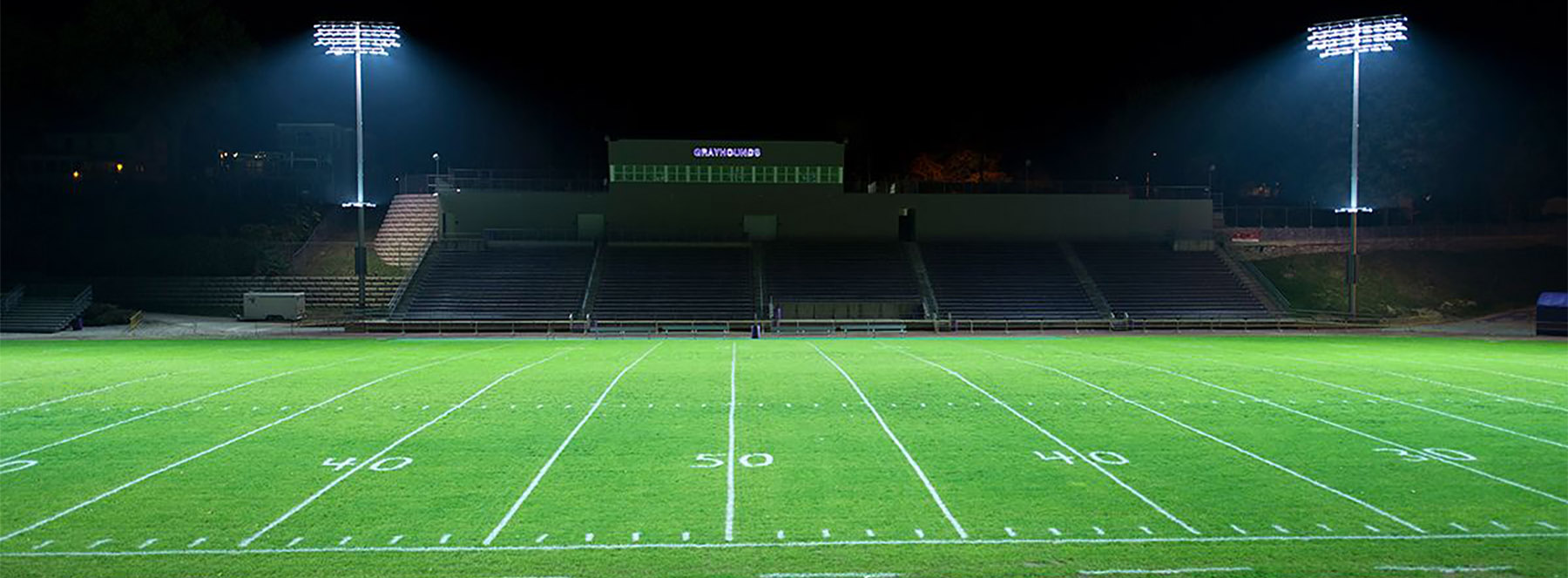

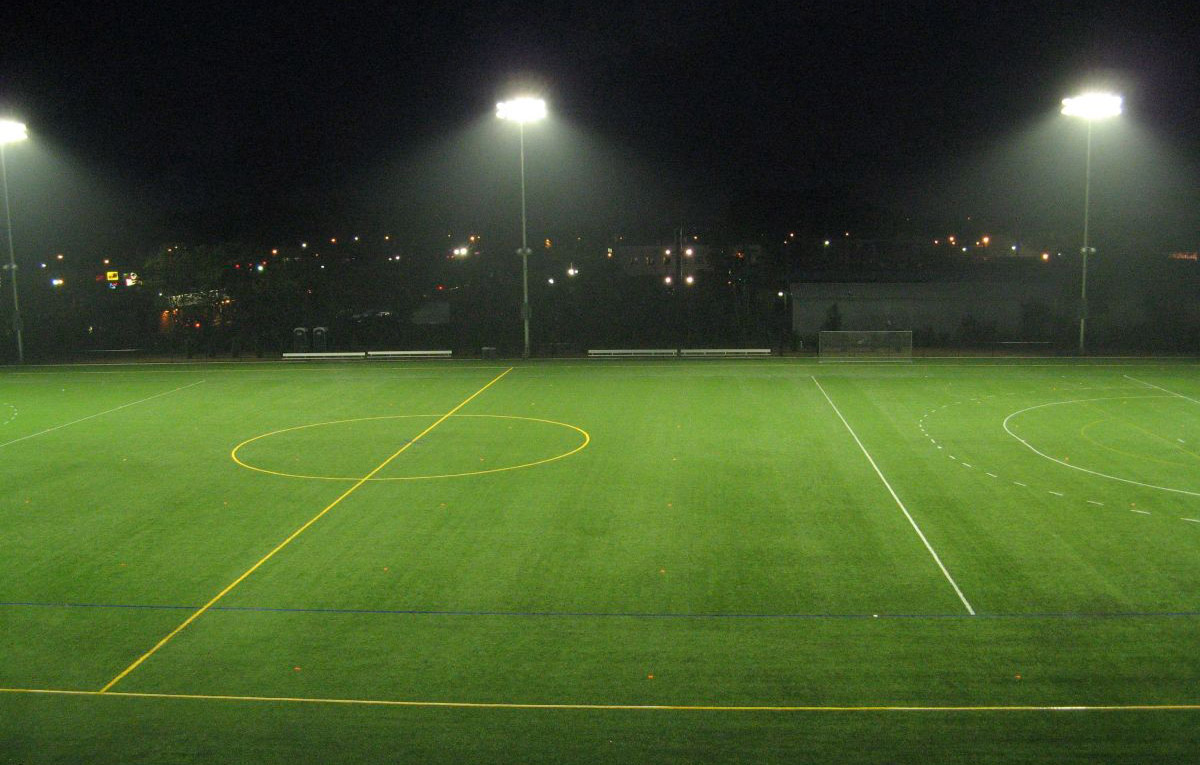

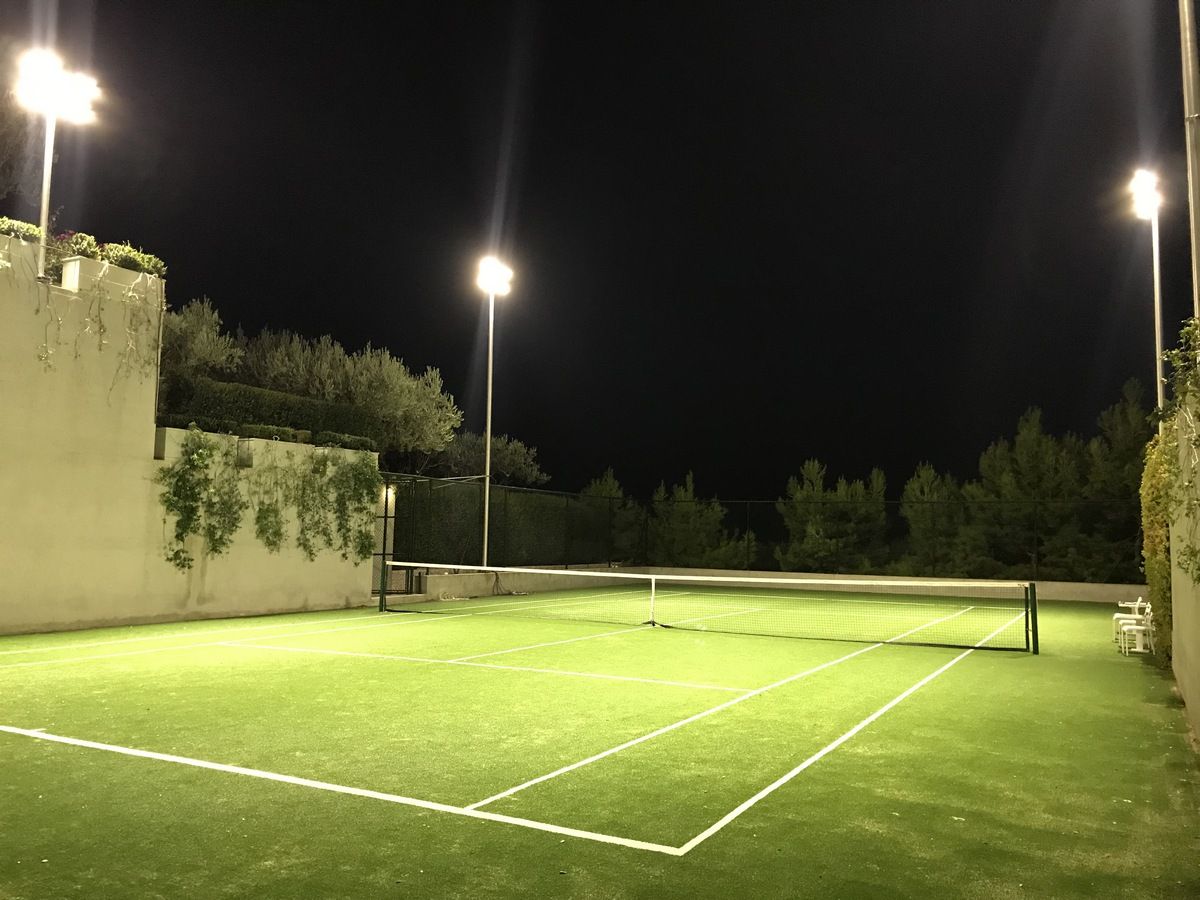

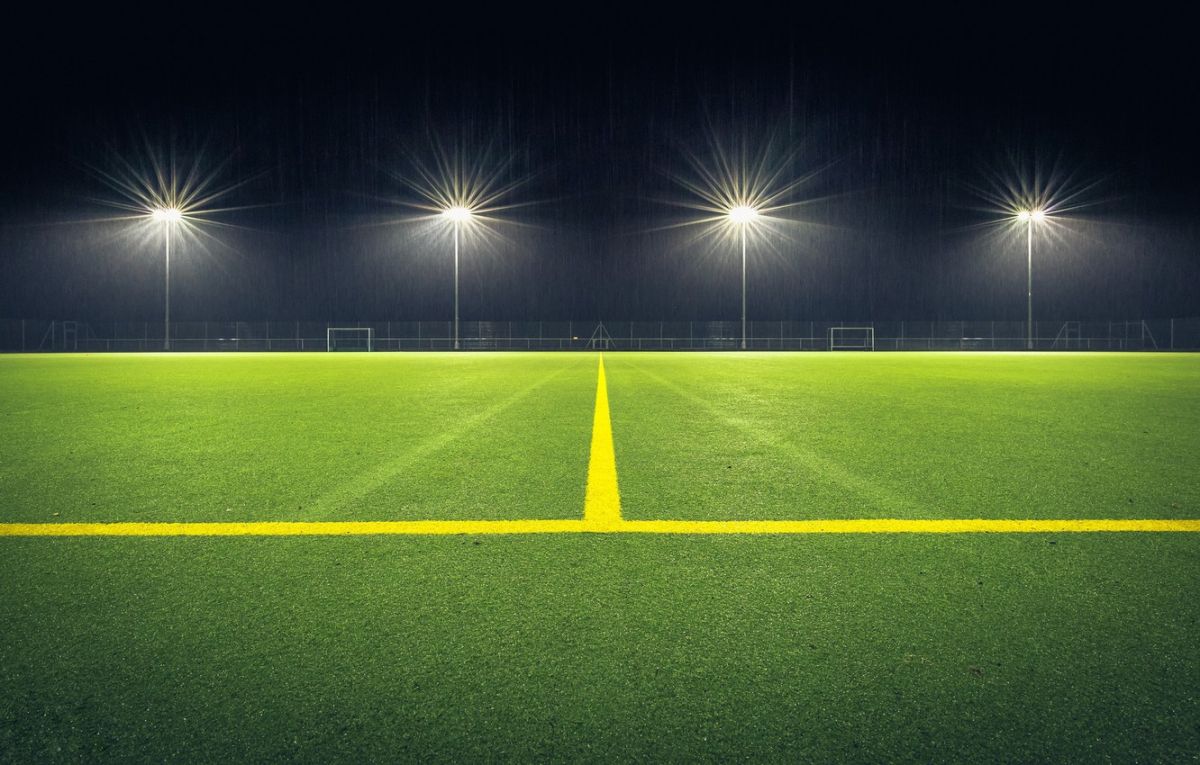

    LED flood light for stadium is widely used in soccer fields for soccer stadium lights, badminton courts, basketball courts, softball fields, airports, docks and other large outdoor facilities lighting.

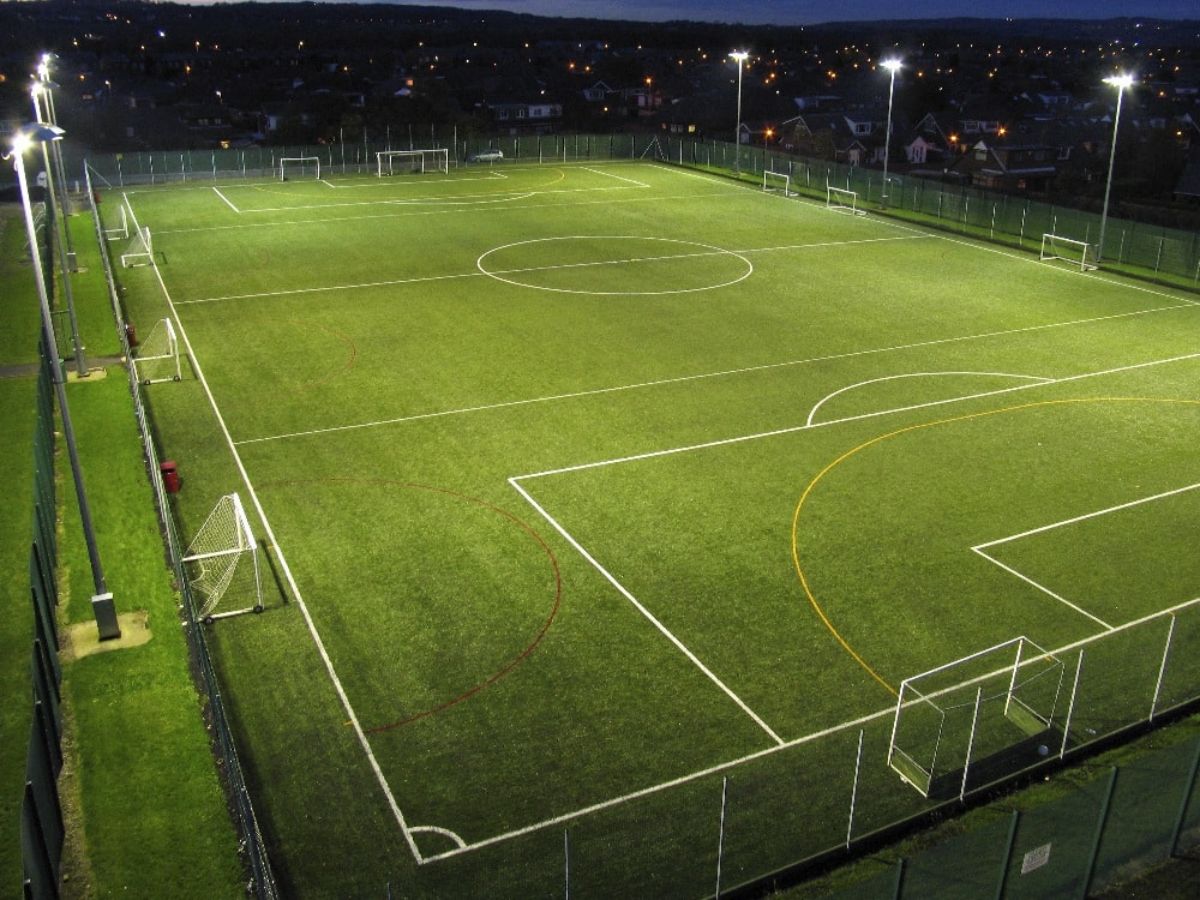

    By installing the football stadium lighting, you can make sure the players and fans can see everything clearly. Thanks to the football stadium light everyone can be safe. It is a great way to improve the gaming experience for players and fans.

    Furthermore, you can even have the flexibility of planning the matches at any time of the day. This is because football stadium floodlights will provide same lighting as natural light. There will be no dark spot in the stadium.

    Depending on your needs, you can choose an LED football stadium lights that is temporary or permanent. A permanent light will be fixed on a pole offering a lighting solution for many years. While the temporary lights are also known as self-contained units. These are perfect for certain events or games.
