60W-300W Smart Control Led Street Light

Short Description:

VKS high-quality led street lighting fixture, 130/150/170lm/w can be optional, with Philips Lumileds 3030/5050 LED and brand waterproof driver, high light efficiency and low power consumption with good environmental performance, can save 80% electricity cost, it can also match dimming function and intelligent module, widely used town parks, roads and lawns lighting etc.


  • Power: : 60W, 120W, 180W, 250W, 320W
  • Input Voltage:: AC90-305V 50/60Hz
  • Lumen:: 7800-54400lm
  • Beam Angle: : 60/90/120°/T2M/T3M/T4M
  • IP Rate:: IP66
  • FEATURE

    SPCIFICATION

    APPLICATION

    Download

    Product Tags

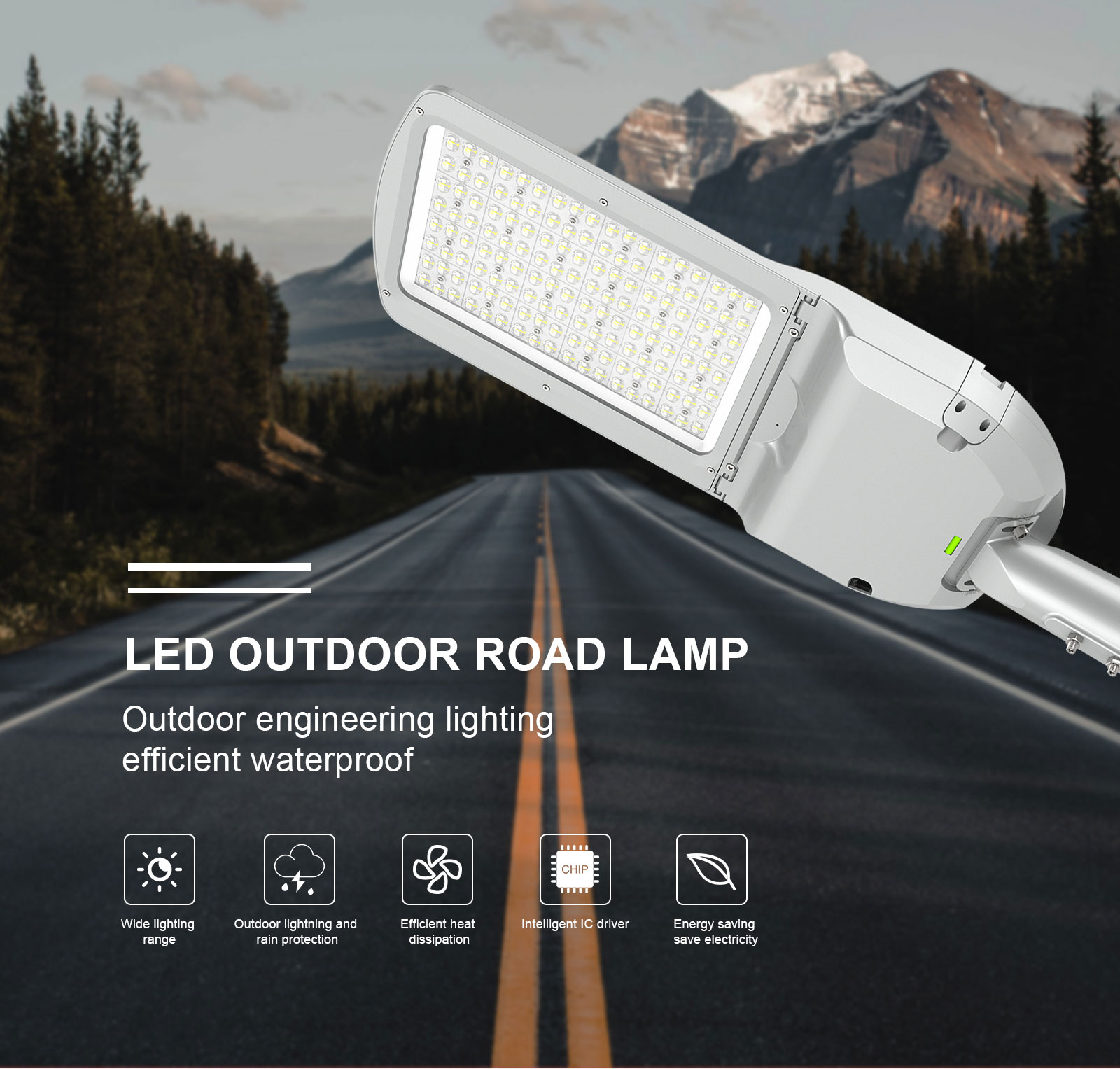

    60W-300W Smart Control Led Street Light

    Product surface upgrade treatment,
    improve texture and heat dissipation

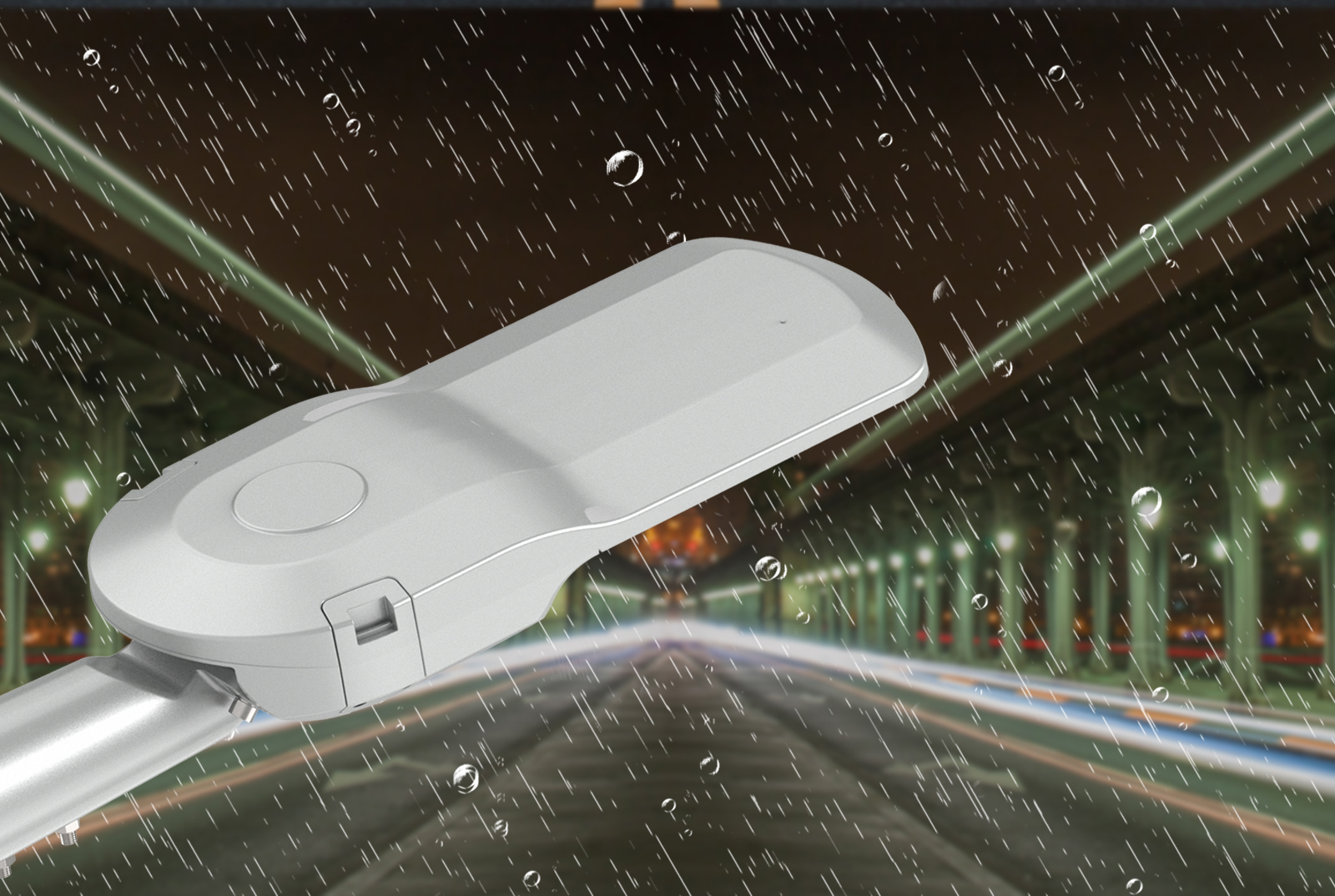

    IP66 led street light

    Integrated Die-casting, IP66 Protection Grade

    VKS Vesci series street light led adopt ADC12/ die-casting aluminum alloy, integrated die-casting molding, exquisite and unique appearance, protection grade up to IP66, outdoor silver gray powder spraying, can withstand high temperature ultraviolet radiation and rain washing, meet the requirements of outdoor products salt spray test and meet the requirements of solar radiation test continuous irradiation.

    60W-300W Smart Control Led Street Light (3)
    60W-300W Smart Control Led Street Light (4)

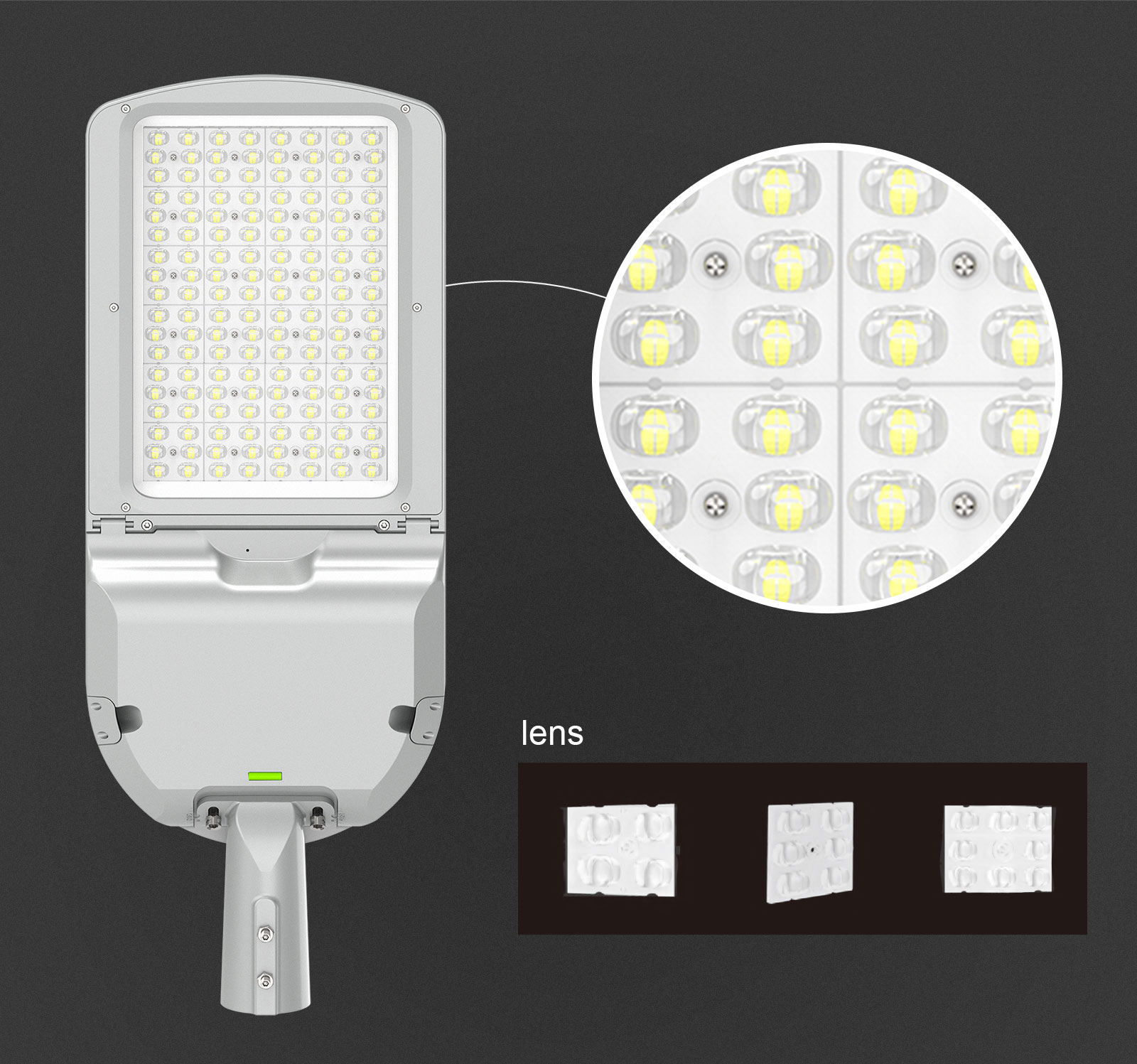

    VKS Vesci series led street lighting fixture 3 kinds of optical lenses are available, respectively matching Philips LumilEDS 3030/5050 lamp beads, according to user requirements, light efficiency 130/150/170LM/W options, energy saving and high quality is our positioning, to create quality products is our fundamental, cost-effective is our pursuit, cost saving for customers has always been our direction.

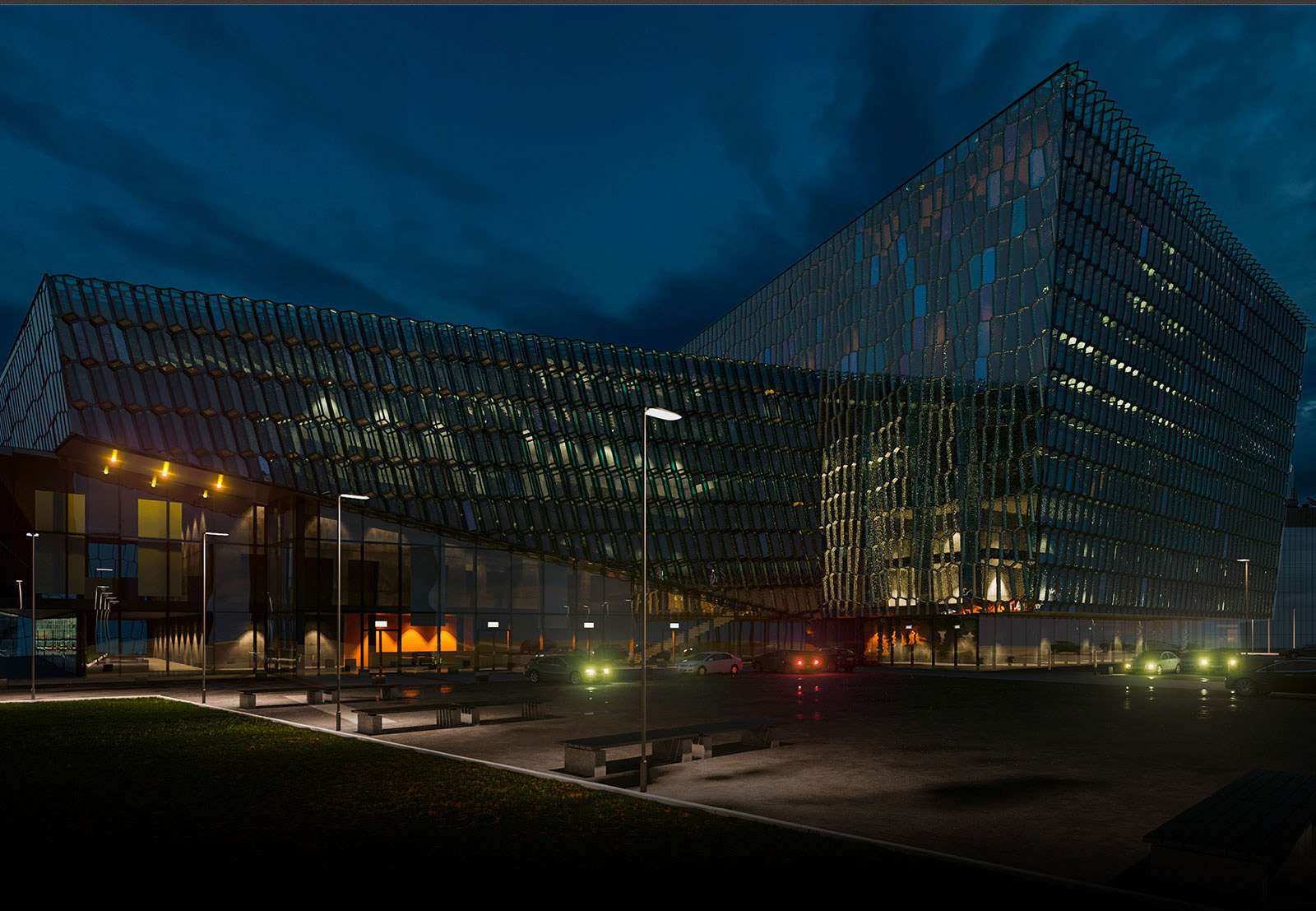

    60W-300W Smart Control Led Street Light (5) - page

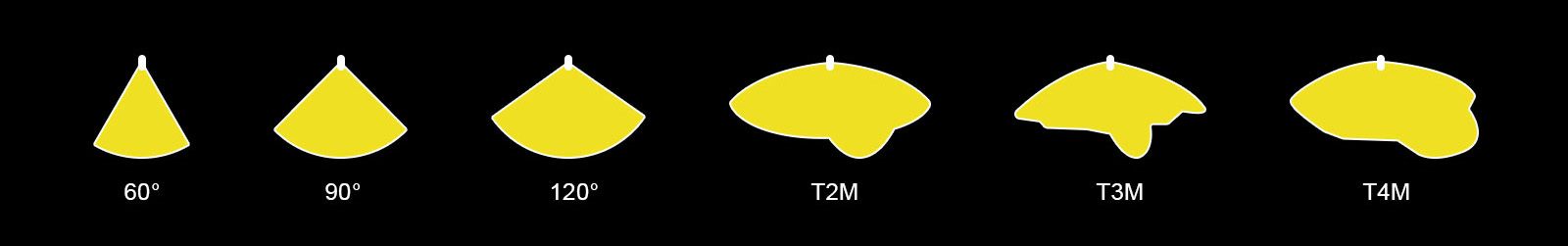

    Professional anti-glare lens, 6 beam angles to meet all kinds of road lighting design requirements

    60W-300W Smart Control Led Street Light (5)

    VKS Vesci series led street lamp adopts professional anti-glare lens with uniform light distribution and low glare value, which meets the standard of urban road lighting. The lens Angle can be selected from 60°/90°/120°/T2M/T3M/T4M, providing flexible solutions for the design of different outdoor road lighting schemes.

    Simple installation and maintenance,
    fast operation, saving labor cost

    60W-300W Smart Control Led Street Light (6)

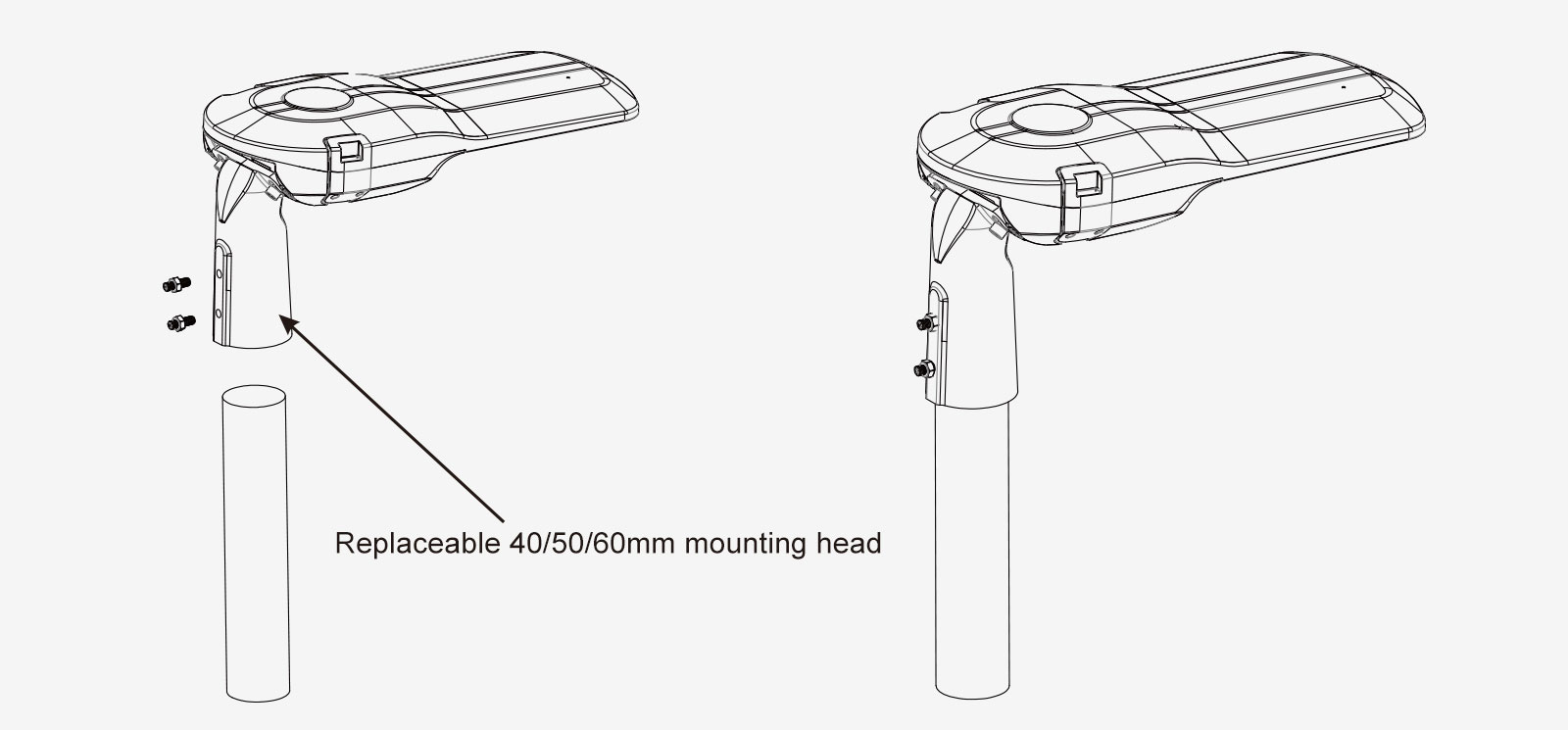

    VKS Vesci series led street lamp outdoor lighting mounting hole 60mm, can replace 40/50/60mm mounting head, product maintenance and operation is simple, the structure design of the lamp change quick disassembly, without any tools, saving maintenance time and labor cost.

    Product maintenance

    Quick disassembly type lamp changing structure, when the lamp needs maintenance:

    60W-300W Smart Control Led Street Light (7)

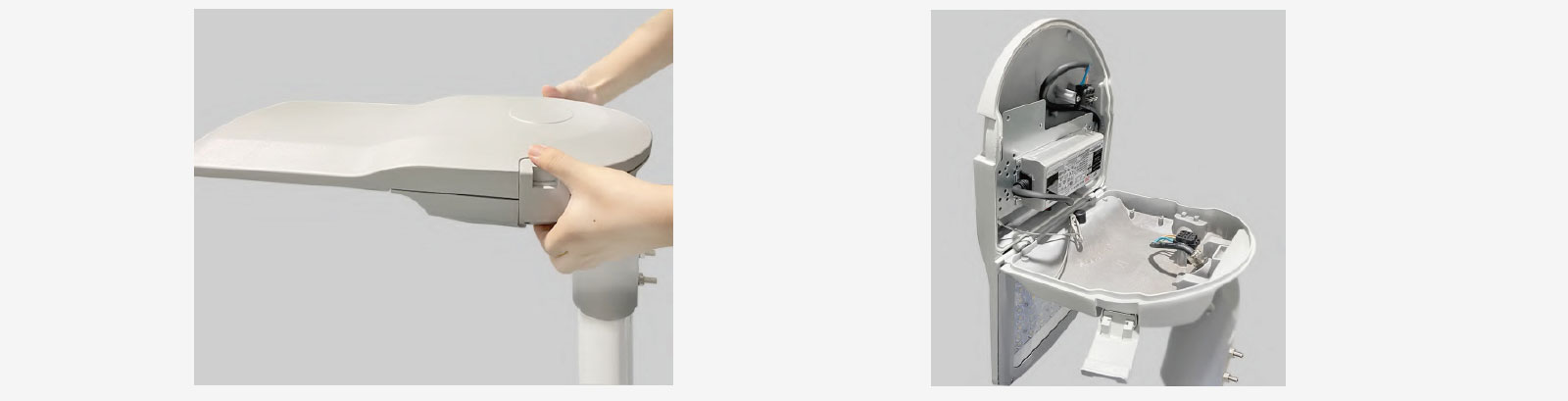

    1. Put both hands on both ends of the power supply cover latch to open the latch, and make the heat dissipation body and the power supply cover form an Angle of 90 degrees (as shown in Figure 1 and 2).

    60W-300W Smart Control Led Street Light (8)

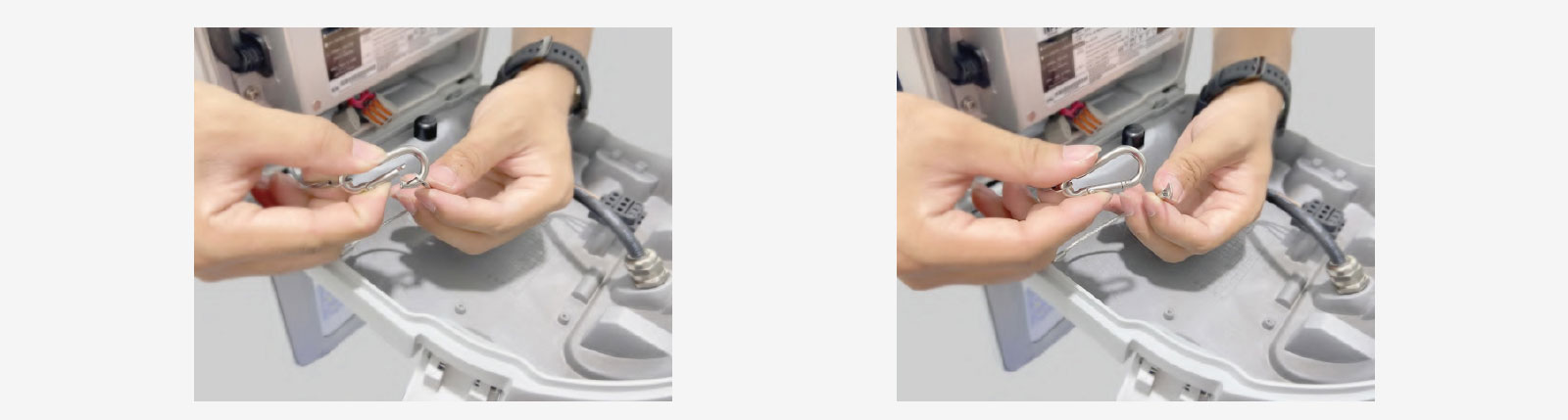

    2. Open the safety rope spring buckle and take out the hanging rope connected to the power supply cover (as shown in Figure 3 and 4).

    60W-300W Smart Control Led Street Light (9)
    60W-300W Smart Control Led Street Light (10)

    Smart lighting control system, to creat smart life

    VKS Vesci series smart led street lighting system can be controlled by 0/1-10V dimming, time control, light sensing, Internet of Things control and other functions to save manpower operation, maximize resource utilization and build smart cities.

    SPECIFICATON

    Model VKS-ST60W-V VKS-ST120W-V VKS-ST180W-V VKS-ST250W-V VKS-ST320W-V
    Power

    60W

    120W

    180W

    250W

    320W

    Product size(mm) L568*W200*H109mm L613*W240*H109mm L683*W260*H109mm L693*W300*H109mm L793*W300*H109mm
    Product Size with light sensor(mm)

    L568*W200*H130mm

    L613*W240*H130mm

    L683*W260*H130mm

    L693*W300*H130mm

    L793*W300*H130mm

    Input Voltage

    AC90-305V 50/60Hz

    LED Type

    Lumileds(Philips) SMD 3030/5050

    Power Supply

    Meanwell  / SOSEN / Inventronics driver

    Efficacy(lm/W)

    130/150/170LM/W(5000K, Ra70) optional

    Lumen Output±5%

    7800-10200LM

    15600-20400LM

    23400-30600LM

    32500-42500LM

    41600-54400LM

    Beam Angle

    60° / 90° / 120°/T2M/T3M/T4M

    CCT (K)

    3000K/4000K/5000K/5700K

    CRI

    Ra70(Ra80 for optional)

    IP Rate

    IP66

    PF

    >0.95

    Dimming

    Non-dimming (Default) /1-10V Dimming / Dali dimming

    Intelligent Control

    Time control/Light Sensor

    Material

    Die-Cast + PC Lens

    Operating Tenperature

    -40℃ ~ 65℃

    Humidity

    10%~90%

    Finish

    Powder Coating

    Surge Protection

    4kV line-line(10KV,20KV for optional)

    Mounting Option

     Bracket

    Warranty

    5 Years

    Q’TY(PCS)/carton

    1PCS

    1PCS

    1PCS

    1PCS

    1PCS

    N.W.(KG/carton)

    3.4kg

    4kg

    4.7kg

    5.1kg

    6.4kg

    Carton Size(mm) 268*268*140mm 666*295*170mm 736*315*170mm 747*355*170mm 846*355*170mm
    G.W.(KG/carton)

    4kg

    4.6kg

    5.5kg

    6.0kg

    7.4k

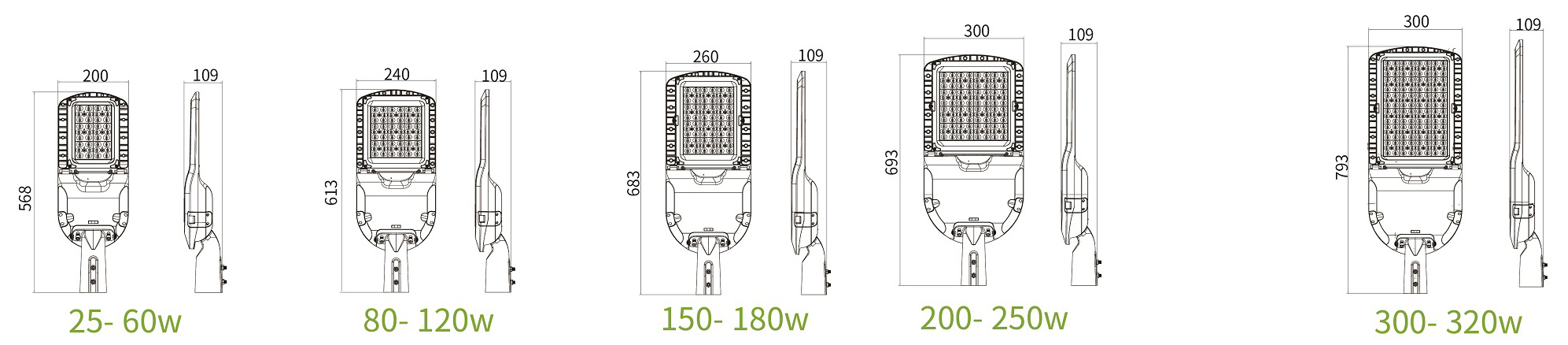

    60W-300W Smart Control Led Street Light Product Size

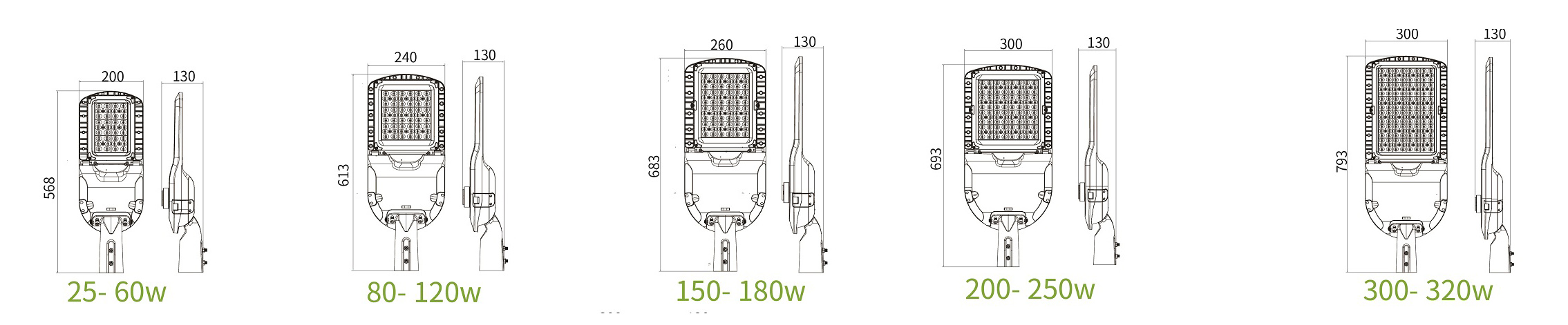

    60W-300W Smart Control Led Street Light Product Size (with light sensor)

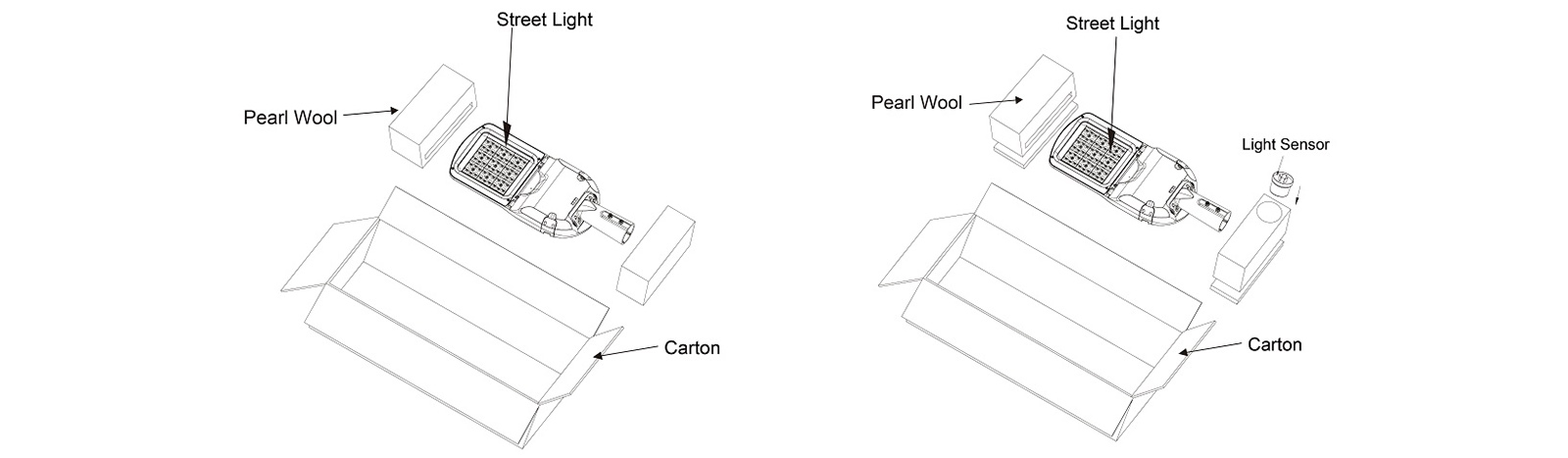

    60W-300W Smart Control Led Street Light Packing

    APPLICATION

    VKS SL7 series led street lights through secondary optical design, from the high power white LED epitaxial technology, chip process and other basic levels to further improve the output power and luminous flux, no light diffuse, ensure the lighting efficiency, make LED lighting range, luminosity curve in line with the needs of road lighting. Widely used in urban roads, sidewalks, squares, schools, parks, courtyards, residential areas, factories and other street lighting.

    VLS SL7 series wholesale led street light lumen depreciation is small, light failure of less than 3% in a year, the use of 10 years still meet the requirements of the road, the use of more than 100LM chip, high light efficiency, compared with the traditional high pressure sodium lamp can save more than 75% of the energy, uniform light color, not to improve brightness at the expense of uniform light color, excellent heat dissipation control, easy installation.
