150W LED Pole and Post Top Light

Short Description:

VKS Collier Series pole top light protection grade IP66, use excellent lens and the anti-glare structure with good anti-glare effect, avoid discomfort and fatigue, use lumileds/osram 3030 led chip, low lumen-depreciation, high reliability and Long lifespan, and add brand driver, flicker-free, the light is very comfortable when you walk in parks, campuses, gardens, villas, zoos, botanical gardens, etc


  • Power:: 50-150W
  • Input Voltage:: AC90-305V 50/60Hz
  • Lumen: : 6500-19500lm
  • Beam Angle: : 60/90°
  • IP Rate: IP66
  • FEATURE

    SPECIFICATON

    application

    Download

    Product Tags

    Feature

    2

    Excellent anti-glare effect, avoid discomfort and fatigue
    VKS Collier Series led pole top lighting housing use high-quality anti-glare lens, using advanced lighting optics to optimize the design, to achieve uniform light, soft, no glare, no gaffer, effectively avoid the to people produce discomfort and fatigue, using high-quality brand LED light source, high light efficiency, good energy saving effect.

    3

    Simple modeling, Beautify and brighten the environment
    VKS Collier Series modern pole and post top light adopts simple, generous, beautiful design in one, with simple form of expression to meet people's perceptual, instinctive and rational demand for space environment, which is the popular design style in today's society, simple and generous modeling, It can be used in residential areas, parks, villas, both sides of roads, commercial pedestrian streets and other places. It is an important part of modern urban construction.

    4

    Low light decline, high reliability and Long lifespan
    VKS Collier Series led garden post top lighting fixture is specially designed for heat dissipation performance, excellent heat dissipation structure, under the condition of ensuring good heat dissipation conditions, the light decline of the lamp is very small, far lower than the ordinary garden lighting source, more stable light, high maintenance coefficient, good reliable performance, life is much higher than the ordinary post top lamp.

    1

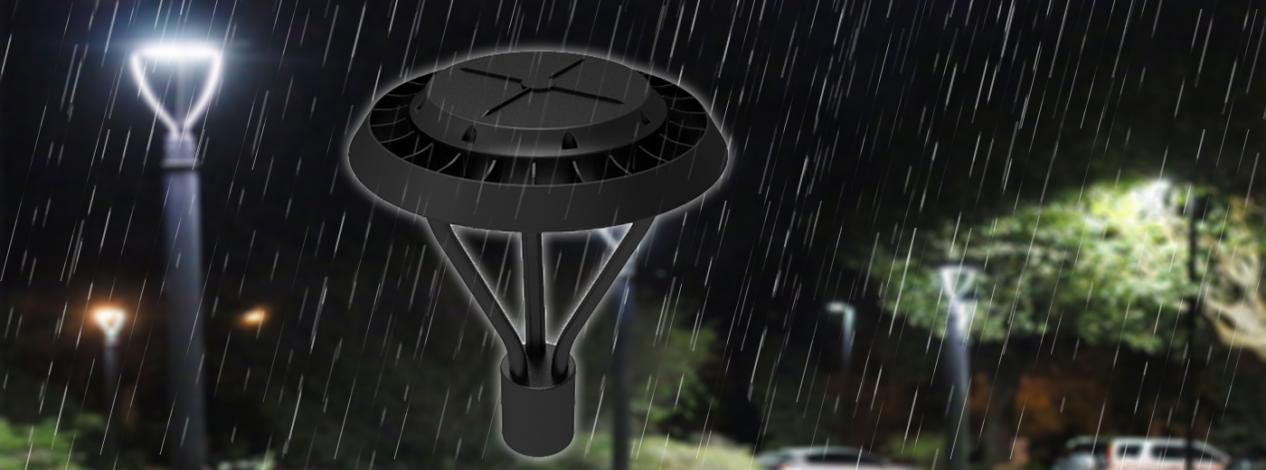

    Protection grade IP66, Anti-corrosion and uv radiation
    VKS Collier Series led pole top light protection grade IP66, no glue for secondary protection, and meet the requirements of outdoor products salt spray test and meet the requirements of solar radiation test continuous irradiation, excellent heat dissipation performance also improves the overall luminous quality and efficiency of the product.

    Specification

    Model

    PS-GL50W-C

    PS-GL150W-C

    Power

    50W

    150W

    Product size(mm)

    D400*H609mm

    Input Voltage

    AC90-305V 50/60Hz

    LED Type

    Lumileds(Philips) SMD 3030

    Power Supply

    Meanwell / SOSEN / Inventronics driver

    Efficacy(lm/W)

    130LM/W(5000K, Ra70) optional

    Lumen Output

    6500LM

    19500LM

    Beam Angle

    60/90°

    CCT (K)

    3000K/4000K/5000K/5700K

    CRI

    Ra70(Ra80 for optional)

    IP Rate

    IP66

    PF

    >0.95

    Dimming

    Non-dimming (Default) /1-10V Dimming / Dali dimming/RF RGBW

    Intelligent Control

    PIR

    Material

    Die-Cast + PC Lens

    Operating Tenperature

    -40℃ ~ 65℃

    Humidity

    10%~90%

    Finish

    Powder Coating

    Surge Protection

    4kV line-line(10KV,20KV for optional)

    Mounting Option

     Bracket

    Warranty

    5 Years

    Q’TY(PCS)/carton

    1PCS

    1PCS

    N.W.(KG/carton)

    5.8kg

    6kg

    Carton Size(mm)

    512*490*150mm

    G.W.(KG/carton)

    6.6kg

    6.8kg

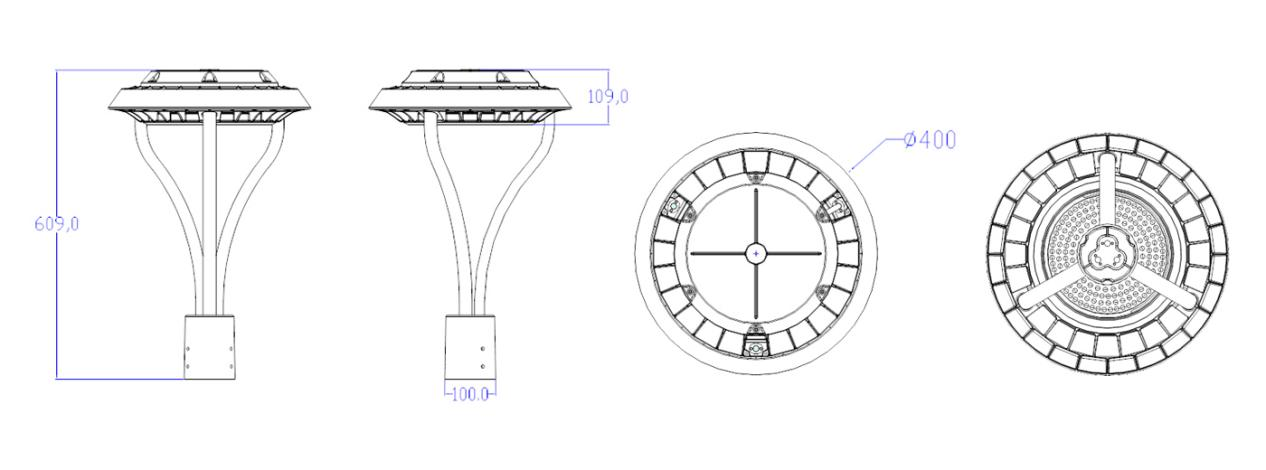

    Size Drawing

    a

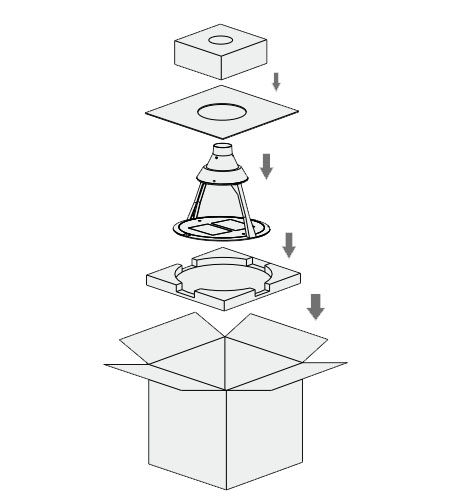

    Packing

    02

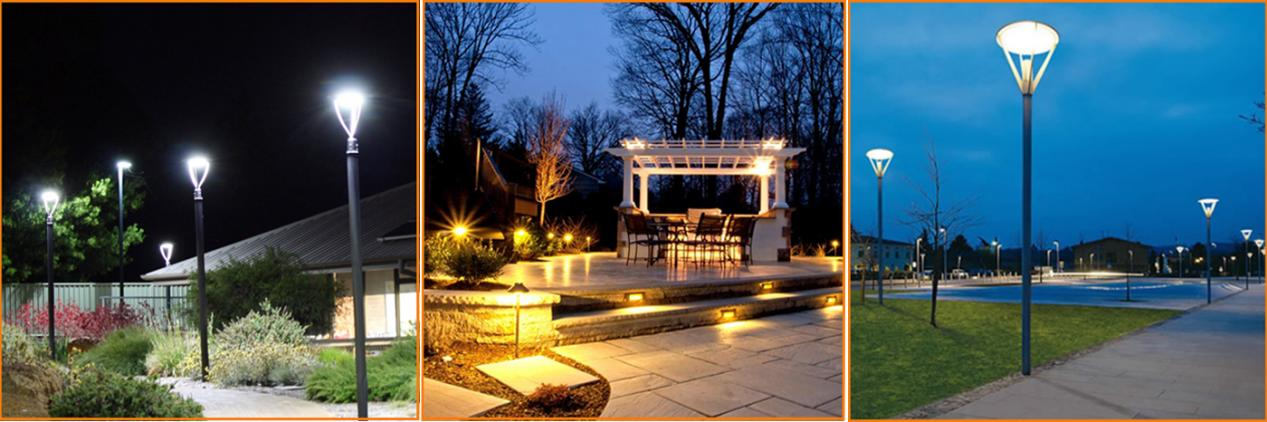

    APPLICATION

    VKS Collier Series modern garden post top light adopts simple, generous, beautiful design in one, with simple form of expression to meet people's perceptual, instinctive and rational demand for space environment, which is the popular design style in today's society, simple and generous modeling, It can be used in residential areas, parks, villas, both sides of roads, commercial pedestrian streets and other places. It is an important part of modern urban construction.
