Hot-selling Tunnel Light Fixtures - 150W LED Pole and Post Top Light – VKS Detail:

Feature

Protection grade IP66, Anti-corrosion and uv radiation
VKS Collier Series led pole top light protection grade IP66, no glue for secondary protection, and meet the requirements of outdoor products salt spray test and meet the requirements of solar radiation test continuous irradiation, excellent heat dissipation performance also improves the overall luminous quality and efficiency of the product.

Specification

Model	PS-GL50W-C	PS-GL150W-C
Power	50W	150W
Product size(mm)	D400*H609mm
Input Voltage	AC90-305V 50/60Hz
LED Type	Lumileds(Philips) SMD 3030
Power Supply	Meanwell / ELG / SOSEN / Inventronics driver
Efficacy(lm/W)	130LM/W(5000K, Ra70) optional
Lumen Output	6500LM	19500LM
Beam Angle	60/90°
CCT (K)	3000K/4000K/5000K/5700K
CRI	Ra70（Ra80 for optional）
IP Rate	IP66
PF	>0.95
Dimming	Non-dimming (Default) /1-10V Dimming / Dali dimming/RF RGBW
Intelligent Control	PIR
Material	Die-Cast + PC Lens
Operating Tenperature	-40℃ ~ 65℃
Humidity	10%~90%
Finish	Powder Coating
Surge Protection	4kV line-line(10KV，20KV for optional)
Mounting Option	Bracket
Warranty	5 Years
Q’TY(PCS)/carton	1PCS	1PCS
N.W.(KG/carton)	5.8kg	6kg
Carton Size(mm)	512490150mm
G.W.(KG/carton)	6.6kg	6.8kg

Size Drawing

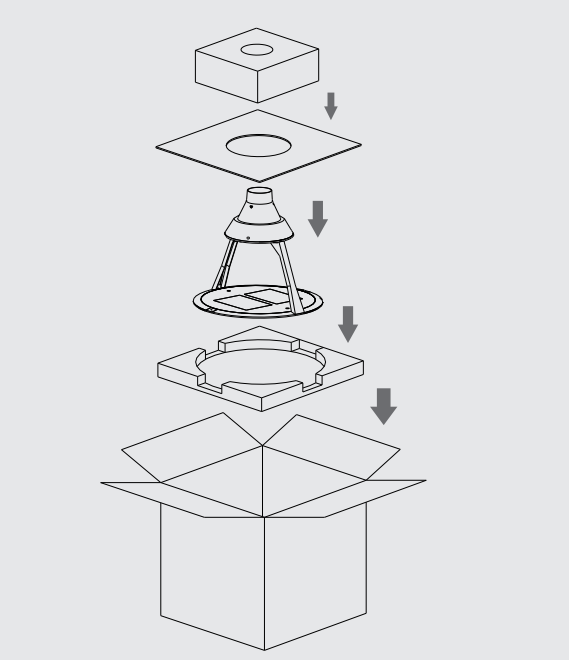

Packing

APPLICATION

VKS Collier Series modern garden post top light adopts simple, generous, beautiful design in one, with simple form of expression to meet people’s perceptual, instinctive and rational demand for space environment, which is the popular design style in today’s society, simple and generous modeling, It can be used in residential areas, parks, villas, both sides of roads, commercial pedestrian streets and other places. It is an important part of modern urban construction.
