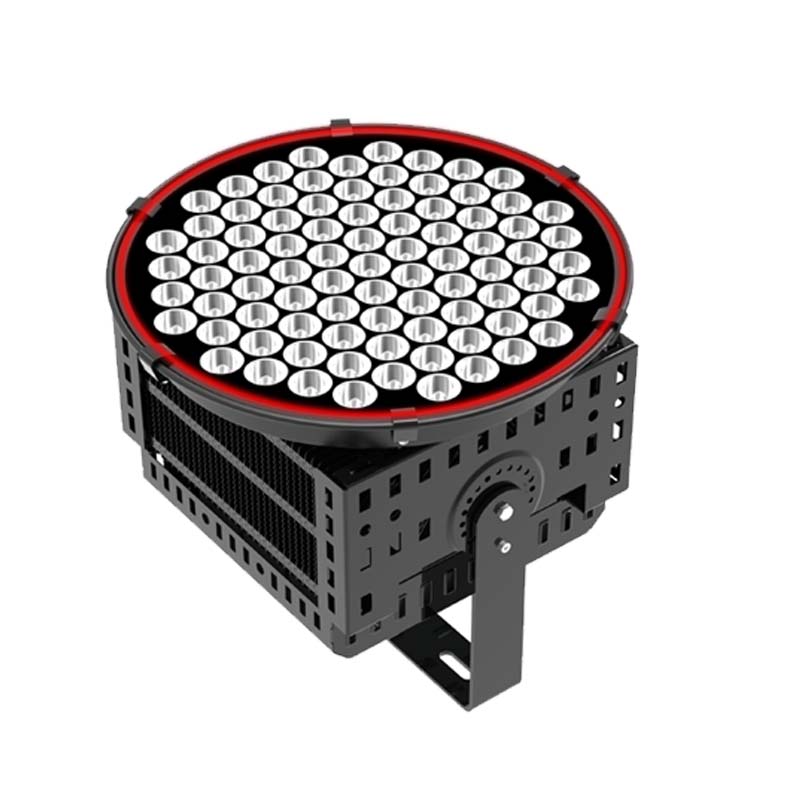

High Power Outdoor LED Staduim Flood Light

Short Description:

This outdoor LED stadium floodlight uses multiple heat dissipation processes to solve high power heat dissipation problems, allowing the chip and driver to last longer. The heat dissipation housing are electrophoresis treated and passed 500 hours of salt spray test, which is highly corrosion resistant. The waterproof level reaches IP65, meeting the requirements of various outdoor harsh environments. According to the different lighting environment can provide 150W-1000W power options, according to customer lighting requirements with different drivers and chips.

Power:: 150W/200W/300W/400W/500W/600W/800W/1000W

Input Voltage:: AC90-305V 50/60HZ

Lumen: : 13,000LM-150,000LM

Beam Angle:: 10°/15°/30°/60°

IP Rate:: IP65

Send email to us

FEATURE

SPECIFICATON

application

Download

Product Tags

Feature

The fins are made of special aluminium for aviation,
the pure copper heat pipe is finned and pressed by
the fin press process, the heat pipe fits closely to the
fin technology. Highly tempered glass process with
93% light transmission.

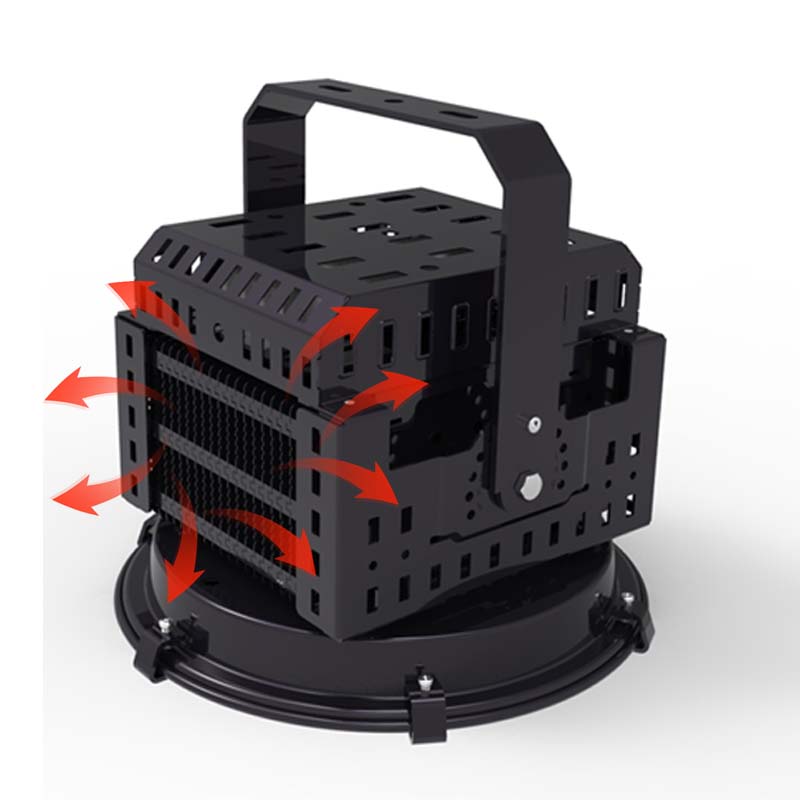

4-fold Heat Dissipation Process for High Heat Dissipation Efficiency

This outdoor LED stadium floodlight features a multi-directional heat dissipation design to better promote heat export and improve the lamp's effectiveness and lifespan.
*HTD process heat dissipation: The heat pipe fits directly to the heat source at zero distance, bringing the performance of the heat pipe to its fullest potential and greatly improving the heat conduction effect.

*Thin fin set cooling design: The thin fin cooling process, with a large contact area with the air, increases the surface area of the cooling, effectively improving the performance, and the heat transfer speed exceeds that of aluminium by approximately 200 times, with excellent and safe and stable cooling effect.

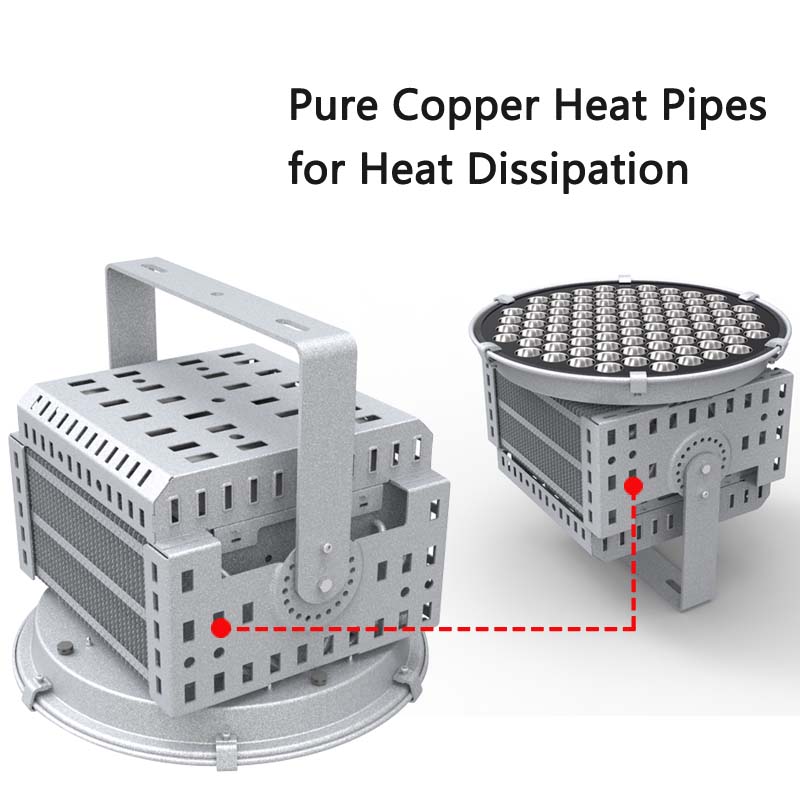

* Pure copper heat pipe cooling process: heat pipes use the principle of heat conduction and the fast heat transfer nature of the cooling medium. With the pure copper heat pipe riveted to the fins heat dissipation technology, the excellent thermal conductivity of the light source is conducted to the fins to achieve a rapid reduction in the temperature of the light source, while also protecting the lamp and extending the service life of the light source.

*3D three-dimensional heat dissipation: each fin is distributed with parallel relative hollow small holes left and right through the convection air channel, using heat pipe riveted fin technology, combined with overclocked shell, inserted teeth innovative technology, various brand components, excellent heat performance, the heat generated by the light source through the heat pipe efficient transfer out, improve the service life of the lamps.

Double Protection: Waterproof and Dustproof
High-strength tempered glass and silicone ring sealing process
The heat dissipation kit as a whole is electrophoresis-treated, with strong corrosion resistance, passing 500 hours of aversion test, using high-strength tempered glass and silicone ring sealing process double protection lamps, waterproof grade to IP65, to meet a variety of outdoor harsh environment requirements, effectively prevent the intrusion of water droplets, dust, all-round protection of the lamps, and tempered glass light transmission rate of up to 96%, uniform luminous, light colour reproduction Realistic.

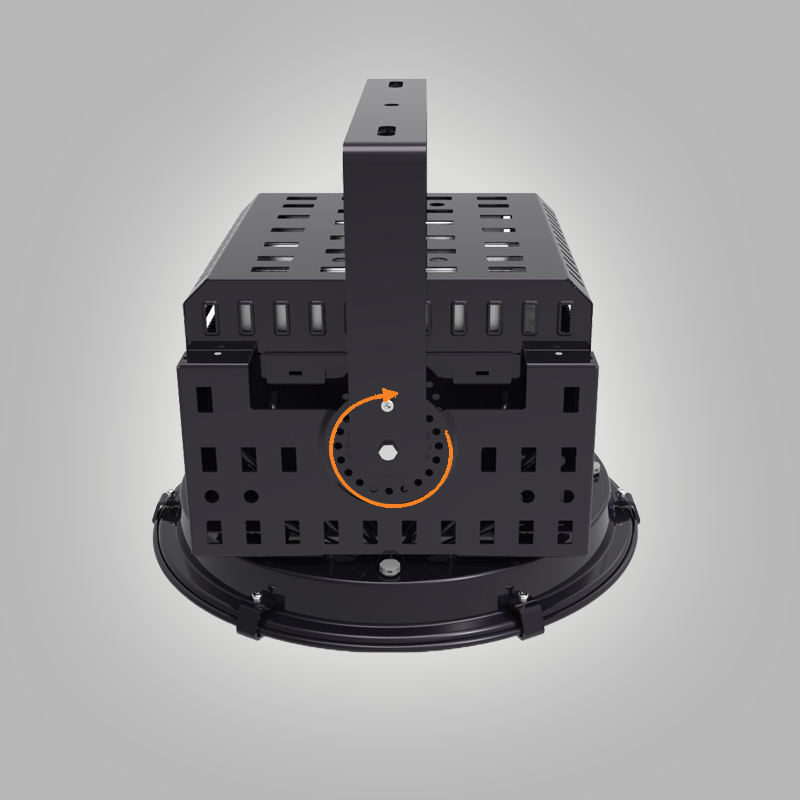

13 Bracket Adjustment Points For Free Adjustment
The pitch light mounting brackets are made of thicker and wider aluminium alloy, which is wind resistant and corrosion resistant. There are 13 bracket adjustment points and the angle can be adjusted by 216°, so there is no dead angle of illumination.

Specification

Model	VKS-SFL150W-Q	VKS-SFL200W-Q	VKS-SFL300W-Q	VKS-SFL400W-Q	VKS-SFL500W-Q	VKS-SFL600W-Q	VKS-SFL800W-Q	VKS-SFL1000W-Q
Input Power	150W	200W	300W	400W	500W	600W	800W	1000W
Product Size(mm)	250x270x135mm	250x270x135mm	310x270x135mm	310x270x135mm	365x330x170mm	365x330x170mm	370x410x230mm	440x410x230mm
Input Voltage	AC90-305V 50-60Hz
LED Type	CREE
Power Supply	Meanwell / SOSEN Driver
Efficacy(lm/W)	150LM/W
Beam Angle	10°/15°/30°/60°
CCT(K)	3000K/4000K/5000K
CRI	Ra70/80
IP Rate	IP65
PF	>0.95
Material	Die Casting Alumium
Operating Temperature	-30°C~60°C
Humidity	10%~90%
Surface Finish	Powder Coating
Warranty	5 yeras
QTY/Carton	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs
N.W.(KG)	5.9	6.5	7.2	7.5	12.5	13	16.5	19
G.W.(KG)	7.2	7.8	8.5	8.8	14.5	15	17.5	20
Package Size(cm)	44x44x33	44x44x33	44x44x33	44x44x33	55x55x36	55x55x36	53x55x37	63x55x37

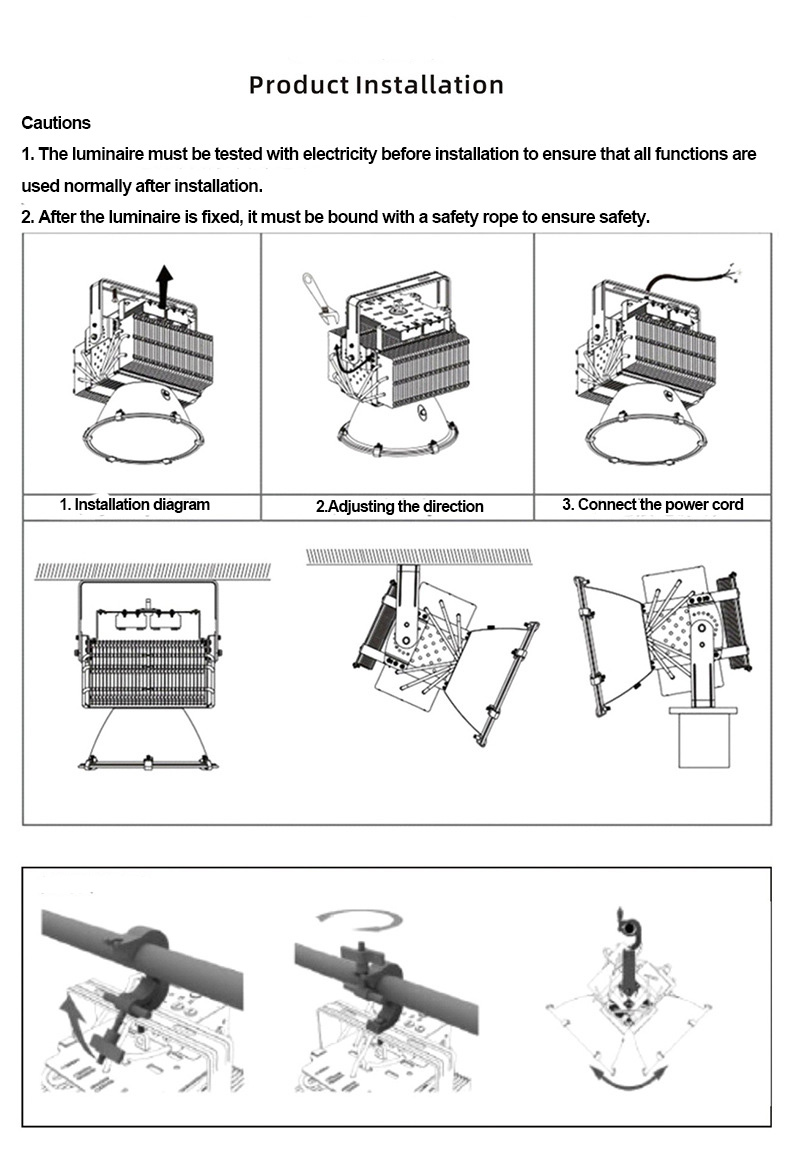

Outdoor LED Stadium Flood Light Installation

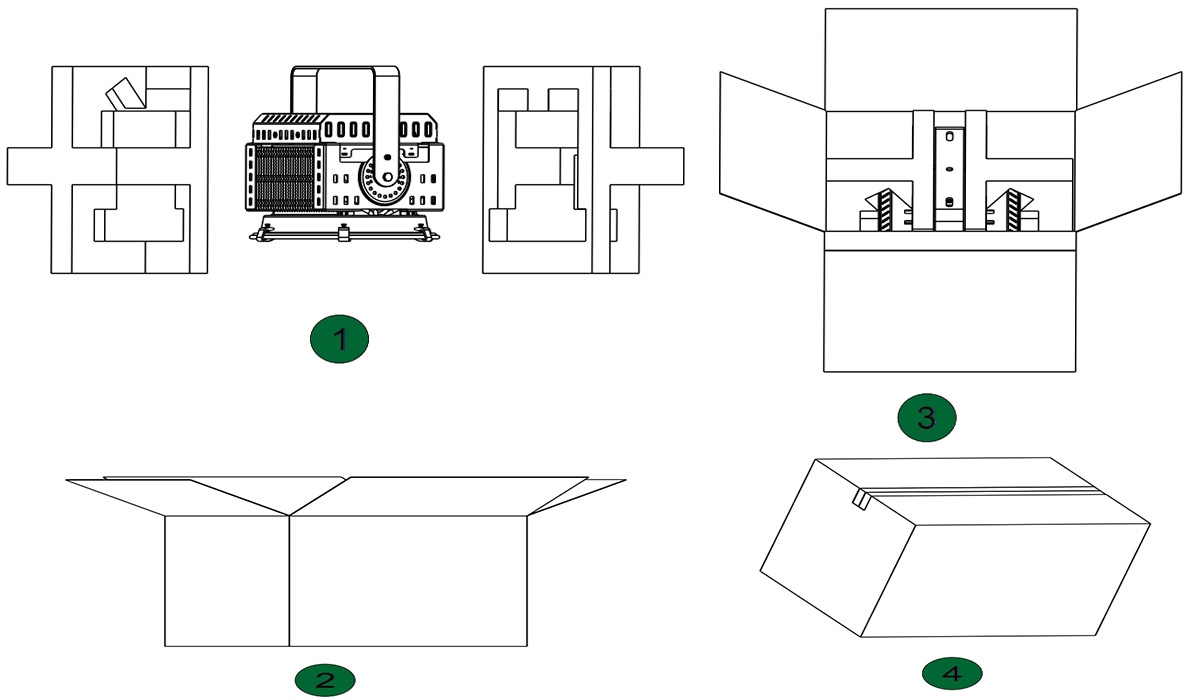

Outdoor LED Stadium Flood Light Pakage

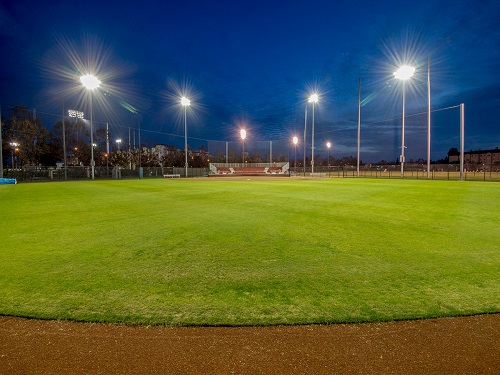

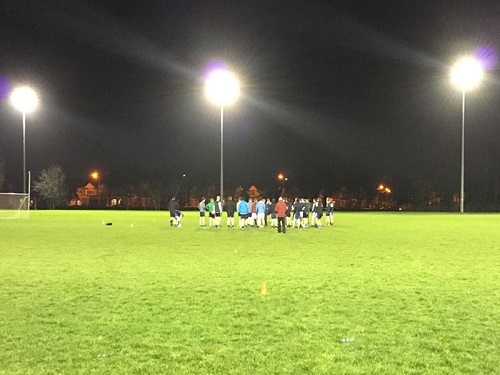

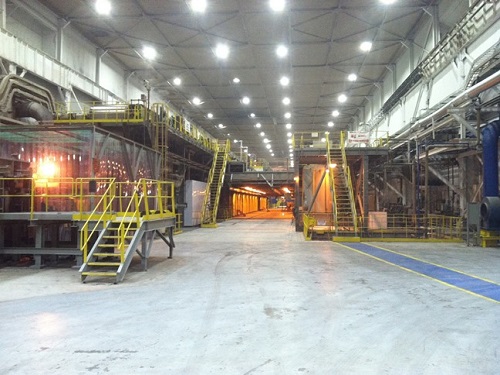

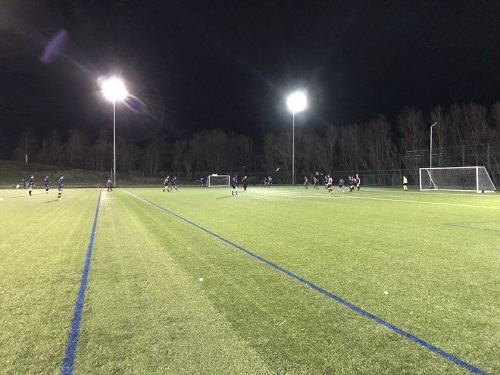

APPLICATION

A high power LED floodlight is a luminaire that designates the illumination on the illuminated surface above the surrounding environment. It is also known as a spotlight. Typically, it is able to be aimed in any direction and has a construction that is not affected by weather conditions. It is mainly used in large workings mines, building outlines, stadiums, overpasses, monuments, parks and flower beds.
