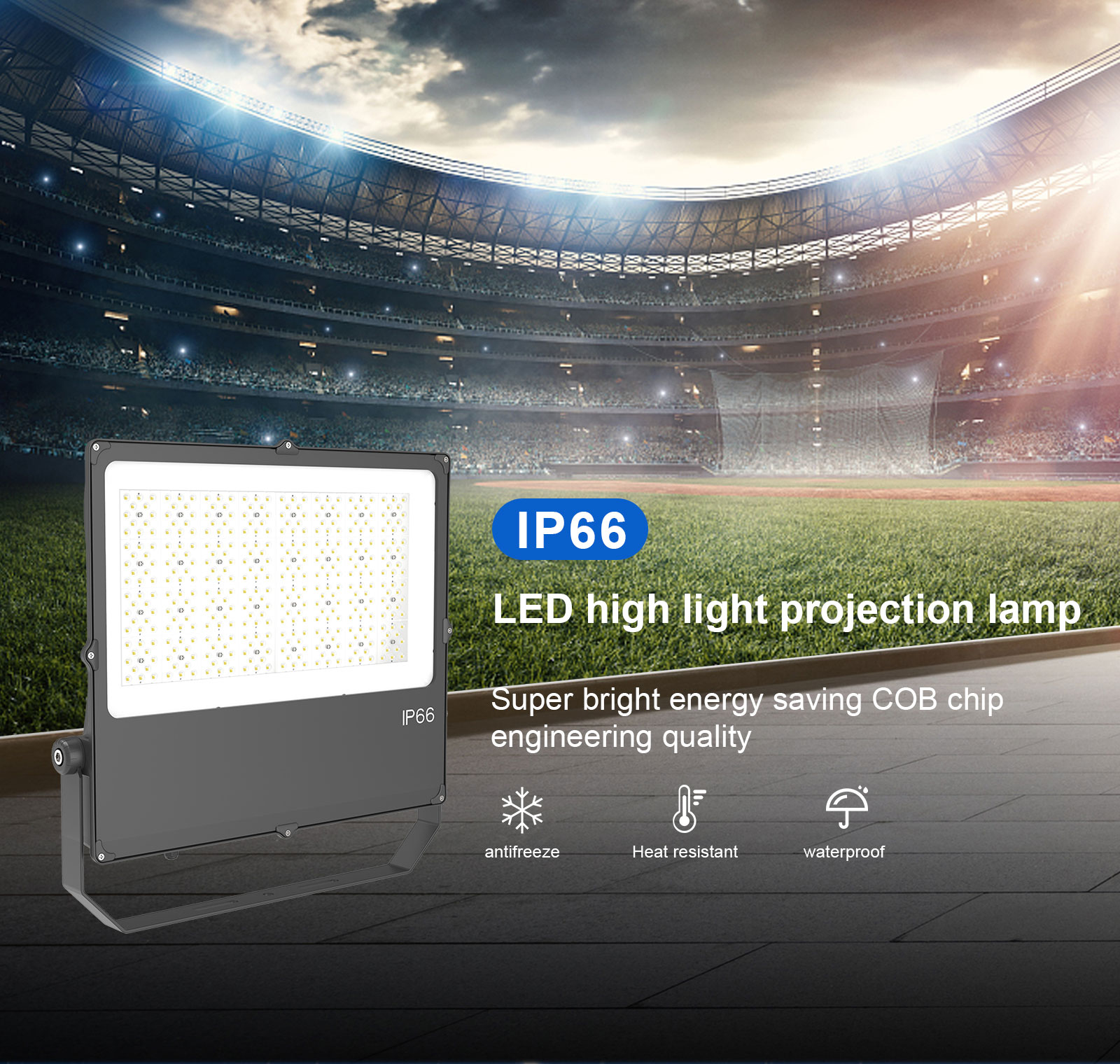

10W-320W IP66 LED Flood Light

Short Description:

VKS FL3 series waterproof led flood lighting, patented private mold, integrated aluminum alloy die-casting molding, highly efficient heat dissipation performance, but also light, multiple beam angle available, compatible with RF full color dimming, optional human body induction function, widely used in hotel exterior wall, square night scene, garden lighting, interior decoration, outdoor floodlight etc.

Power:: 10W, 20W, 30W, 50W, 100W,150W, 200W, 320W

Input Voltage:: AC90-305V 50/60Hz

Lumen: : 1000-48000lm

Beam Angle:: 7/15/30/60/90/120°/T2M/T3M

IP Rate:: IP66

Send email to us

FEATURE

SPECIFICATON

APPLICATION

Download

Product Tags

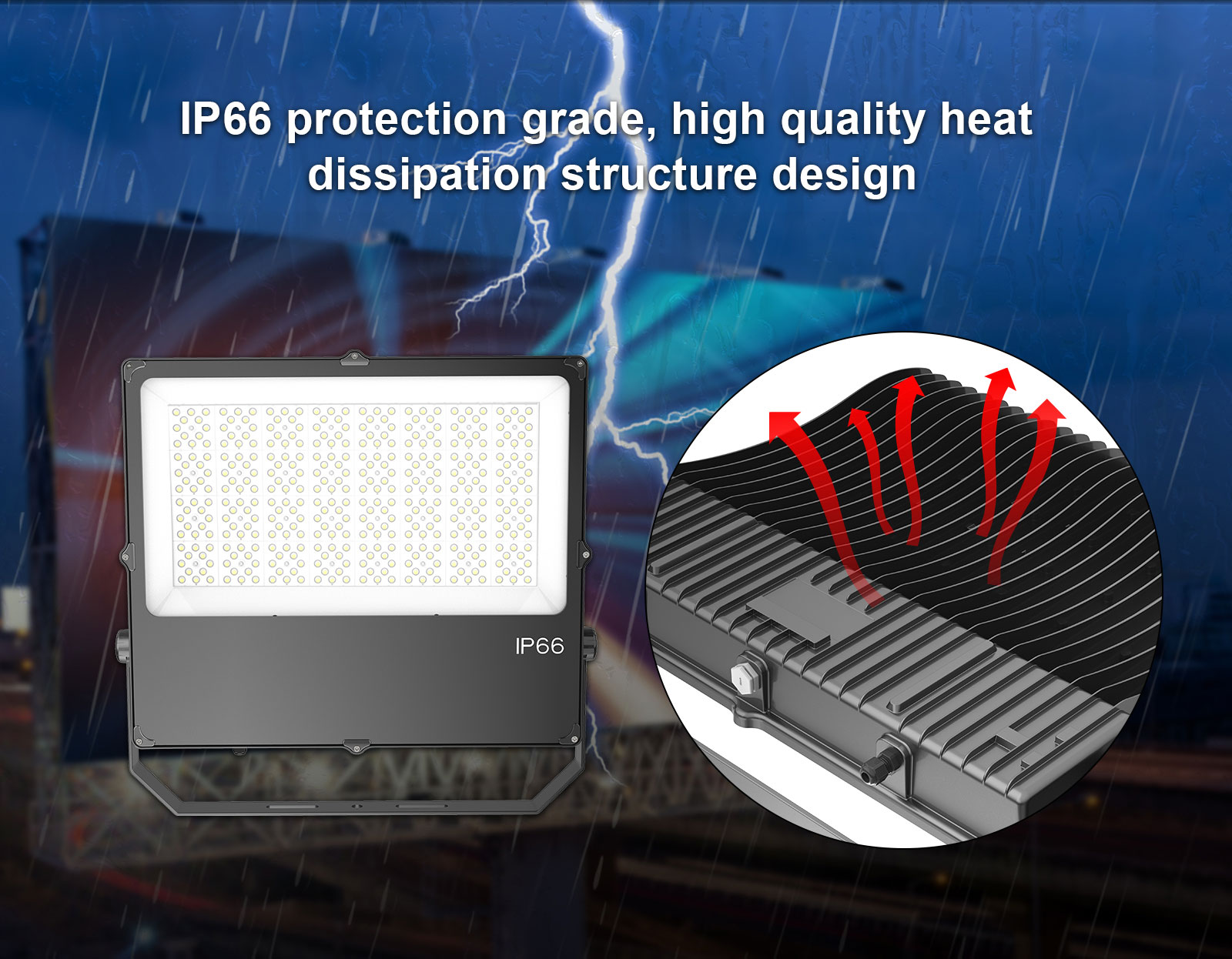

VKS FL3 series led outdoor flood light integrated aluminum alloy die-casting molding, outdoor silver powder, tagging module design, and add metal powder surface outdoor use special silver powder processing, increase the grind arenaceous AoTuGan, more expanded heat dissipation area, outdoor protection grade can reach IP66, outdoor, salt fog test standard, waterproof and dustproof, widely used in all kinds of indoor and outdoor venues.

Excellent anti-glare effect, avoid discomfort and fatigue

VKS FL3 series led floodlights use high-quality anti-glare lens, using advanced lighting optics to optimize the design, to achieve uniform light, soft, no glare, no gaffer, effectively avoid the construction workers to produce discomfort and fatigue, using high-quality brand LED light source, high light efficiency, good energy saving effect.

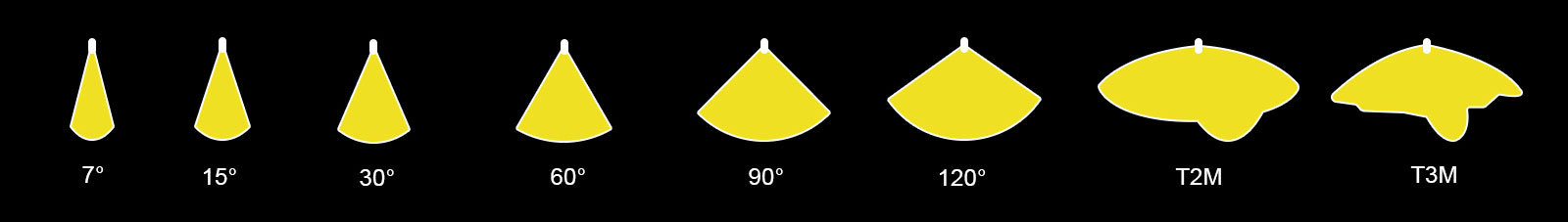

8 kinds of beam angles are optional, the first choice for city lighting

VKS FL3 series led flood light fixture, 7°/15°/30°/60°/90°/120°/T2M/T3M 8 angles are available to meet the needs of various lighting places from basic lighting, key object lighting to garden decoration lighting, flexible for the need of no floodlight lighting, especially suitable for square night scene, garden lighting, interior decoration, outdoor floodlighting.

VKS FL3 series commercial led flood lighting system are compatible with RF full-color dimming, with optional human body sensing function to realize humanization of lighting, improve management level, and use intelligent sensor sensing system to automatically adjust lighting, save energy, and extend the service life of lamps.

SPECIFICATON

Model	VKS-FL-10W-E	VKS-FL-20W-E	VKS-FL-30W-E	VKS-FL-50W-E	VKS-FL-100W-E	VKS-FL-150W-E	VKS-FL-2000W-E	VKS-FL-320W-E
Power	10W	20W	30W	50W	100W	150W	200W	320W
Product size(mm)	18812347mm	24216951mm	28322052mm	36927852mm	39439257mm	44539257mm	49739259mm	52454565mm
Input Voltage	AC90-305V 50/60Hz
LED Type	Lumileds(Philips) SMD 3030
Power Supply	Meanwell / SOSEN / Inventronics driver
Efficacy(lm/W)	100-150LM/W(5000K, Ra70) optional
Lumen Output	1000-1500LM	2000-3000LM	3000-4500LM	5000-7500LM	10000-15000LM	15000-22500LM	20000-30000LM	32000-48000LM
Beam Angle	7/15/30/60/90/120°/T2M/T3M
CCT (K)	3000K/4000K/5000K/5700K
CRI	Ra70（Ra80 for optional）
IP Rate	IP66
PF	>0.95
Dimming	Non-dimming (Default) /1-10V Dimming / Dali dimming/RF RGBW
Intelligent Control	PIR
Material	Die-Cast + PC Lens
Operating Tenperature	-40℃ ~ 65℃
Humidity	10%~90%
Finish	Powder Coating
Surge Protection	4kV line-line(10KV，20KV for optional)
Mounting Option	Bracket
Warranty	5 Years
Q’TY(PCS)/carton	20PCS	20PCS	10PCS	10PCS	6PCS	5PCS	5PCS	3PCS
N.W.(KG/carton)	10kg	17.8kg	14.6kg	20.4kg	23.8kg	22kg	27kg	23.5kg
Carton Size(mm)	395270290mm	510365315mm	465305315mm	588360315mm	415415442mm	465418385mm	520418395mm	544565265mm
G.W.(KG/carton)	11kg	19kg	15kg	22kg	25kg	23.5kg	28.5kg	25kg

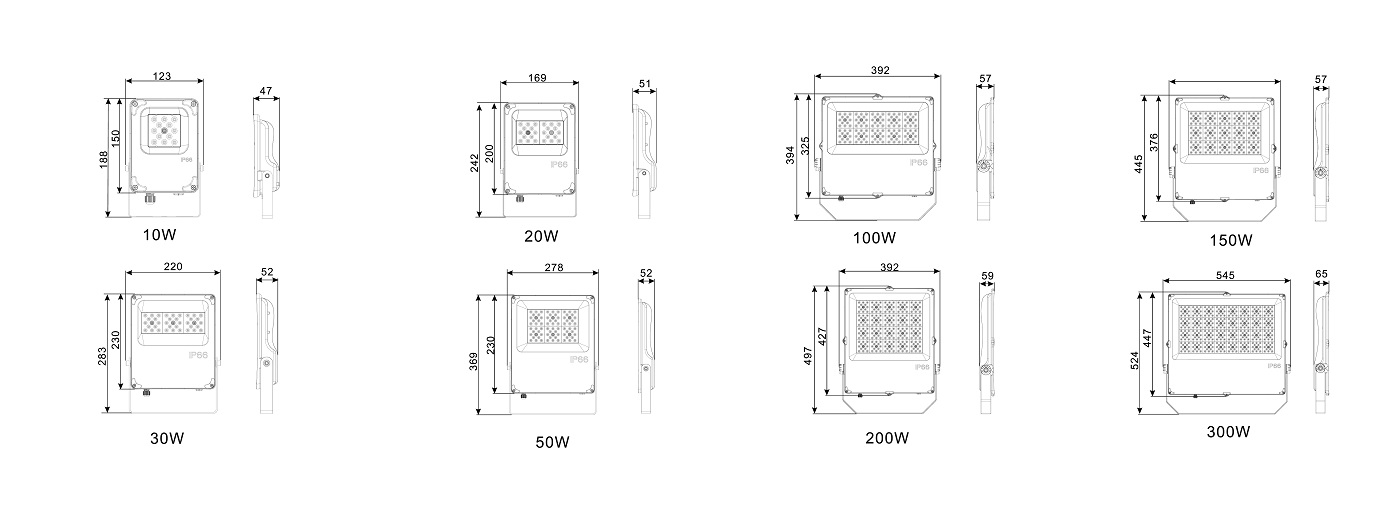

10W-320W IP66 LED Flood Light Product Size

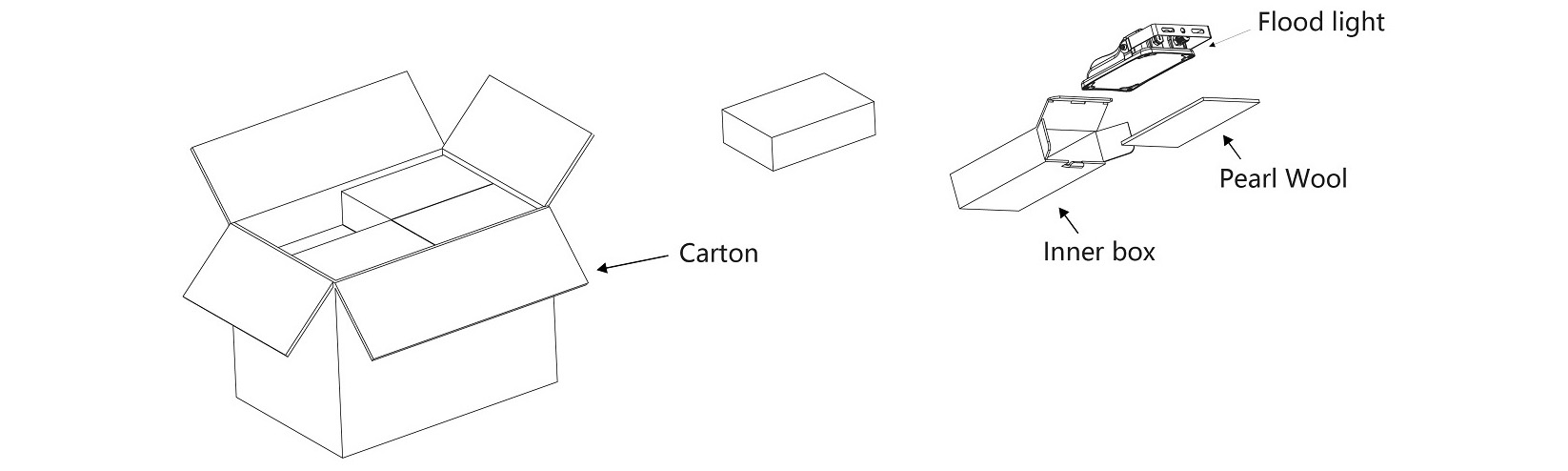

10W-320W IP66 LED Flood Light Packaging

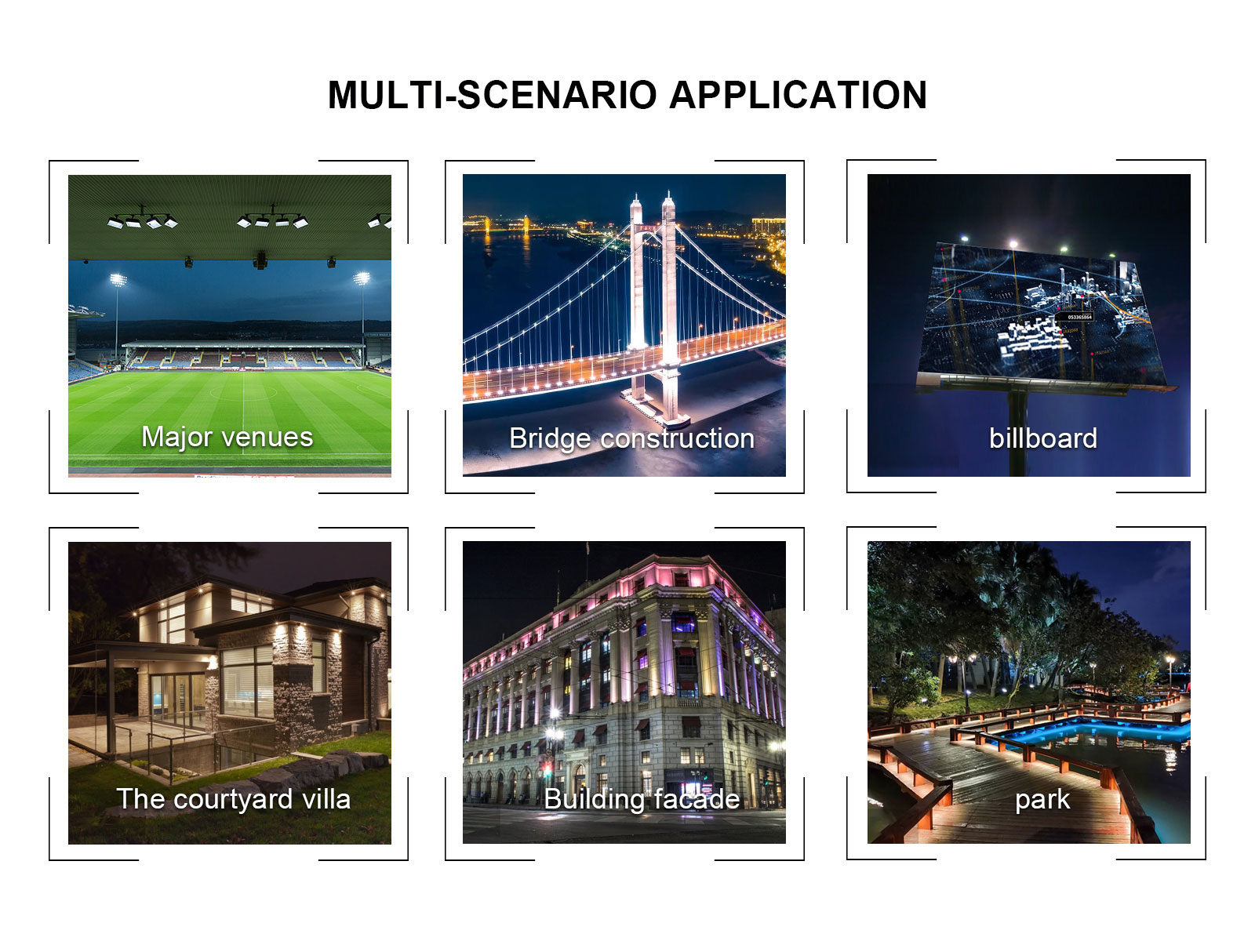

APPLICATION

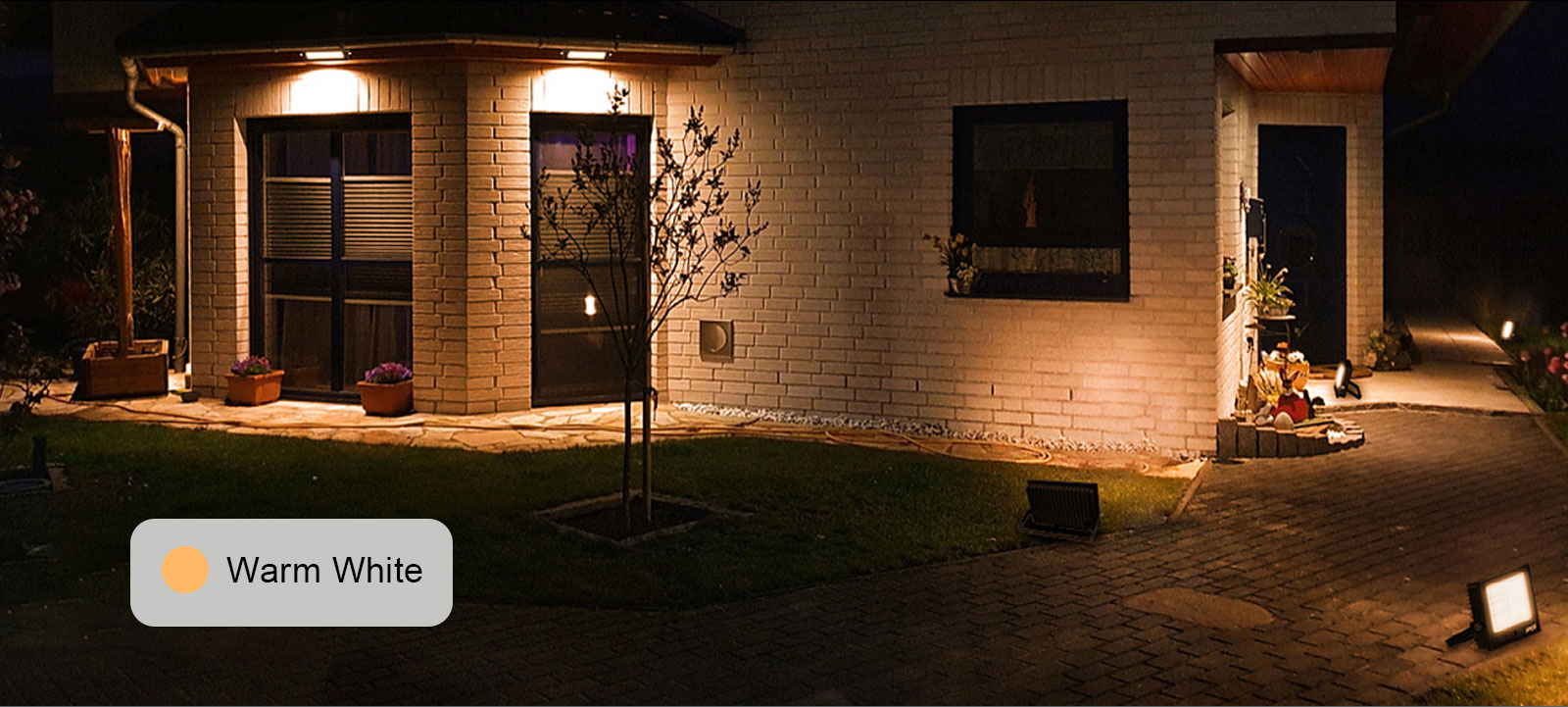

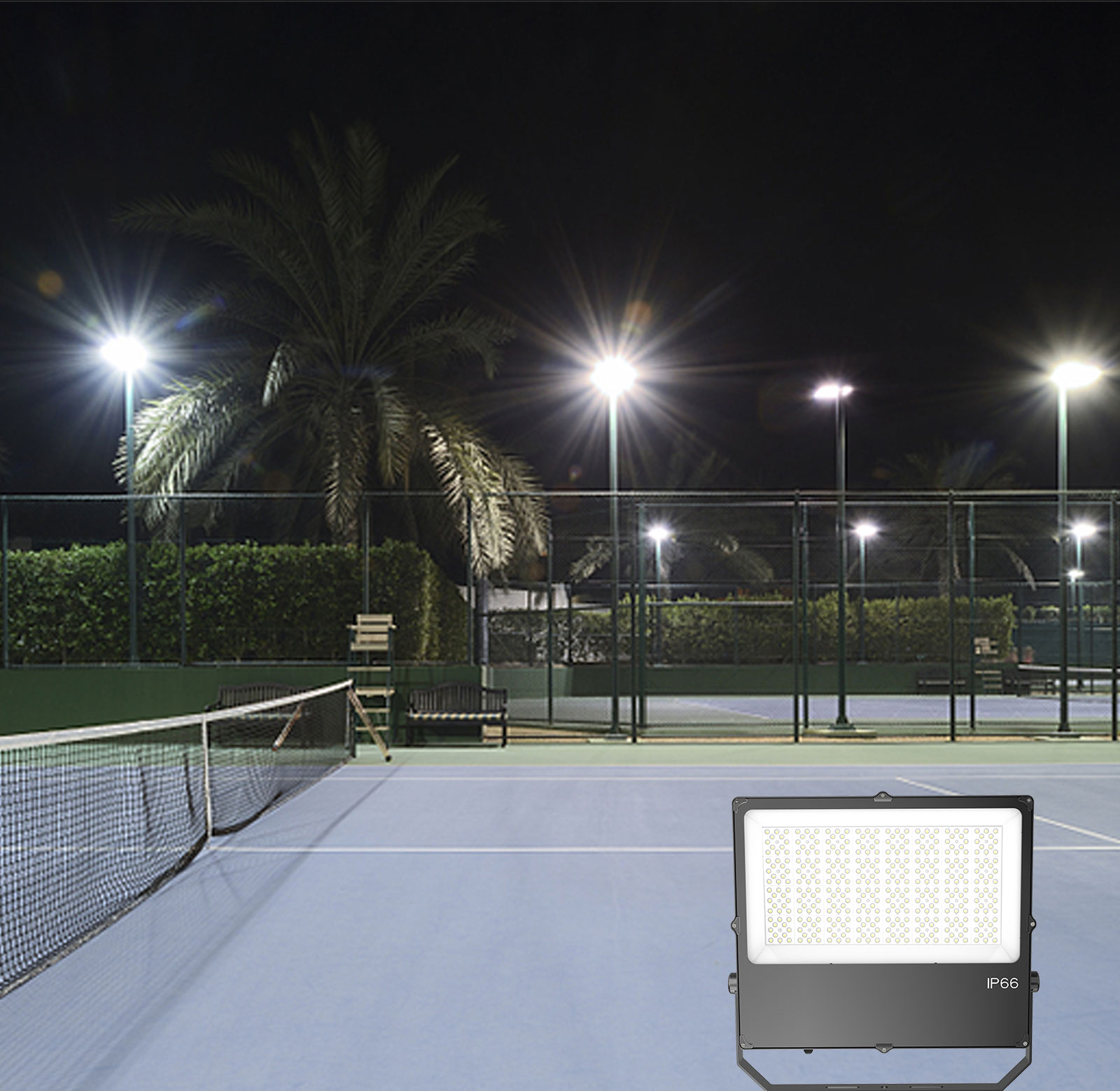

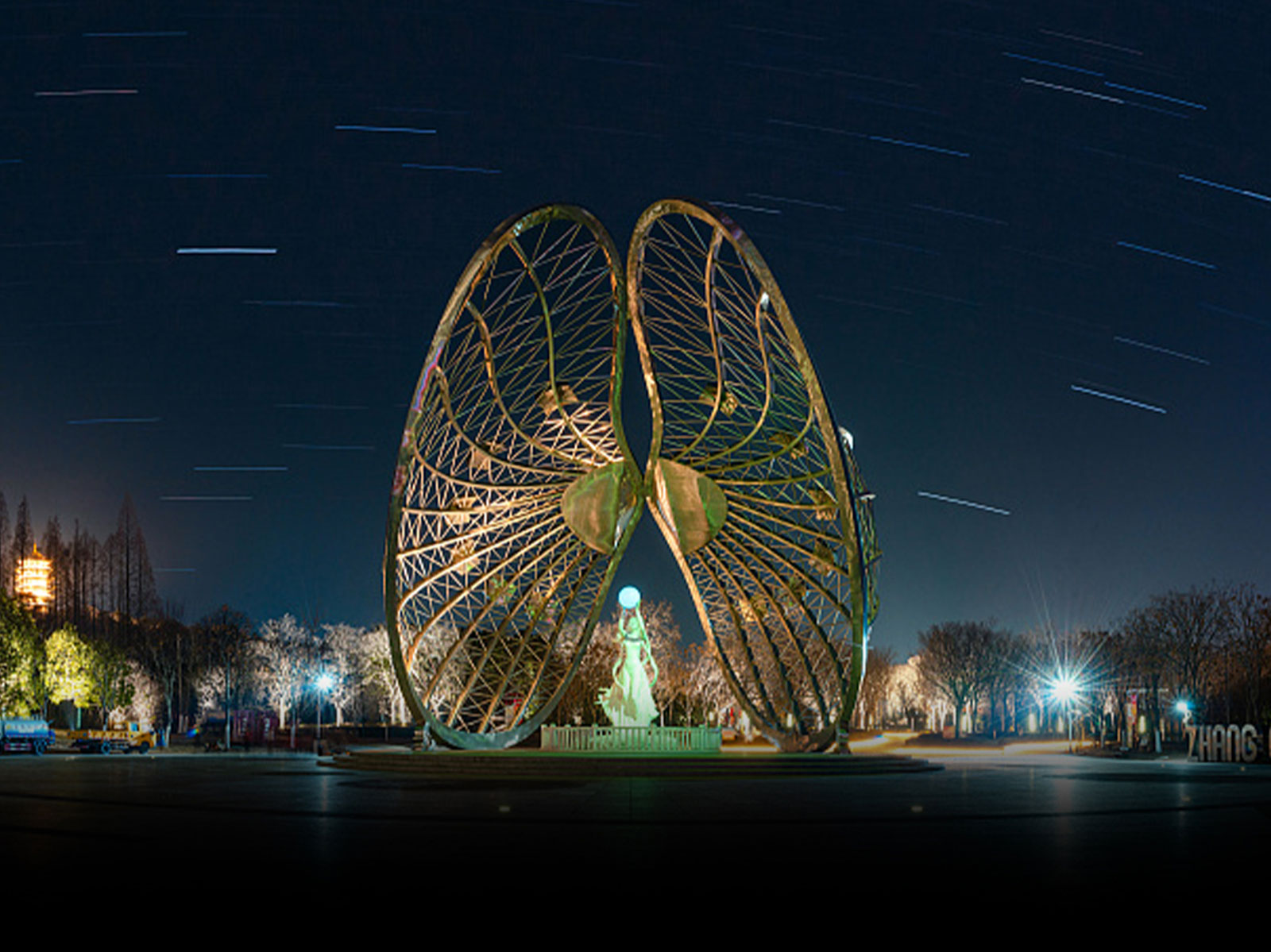

VKS FL3 series outdoor led flood lights energy-saving and environmental protection, no stasmoscopic, good color rendering, color temperature from 2700K to 6500K according to the needs of customers to choose, and can be made into color bulbs, for garden decoration lighting, visible light proportion of more than 80%, good visual effect, high power factor, low current harmonic, constant voltage power supply, constant luminous flux output, Widely used in factories, gymnasiums, docks, billboards, buildings, lawns, horticultural design, lighting projects and other lighting and decorative lighting required places。

VKS FL3 series outdoor led flood light bulb, color rendering index greater than Ra80, the light is soft, is rendered as natural color of the object can be in all directions even illuminate the point light source, it can adjust the illuminate of scope, performance in the scene for a positive octahedral graphic, is widely used in omni hotel walls, square night scene, garden lighting, interior decoration, Outdoor floodlight is the most widely used lamp in landscape lighting.
